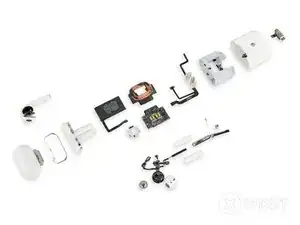

AirPods 2 Teardown
Инструменты
Вот некоторые основные инструменты, используемые для работы на данном устройстве. Вам, возможно, не понадобиться каждый инструмент для каждой процедуры.
Background and Identification
In March of 2019 Apple quietly released its second-generation AirPods. They look almost identical to the first-gen buds released in 2016; the only noticeable external differences being the relocated LED charging indicator and a slightly different hinge. Internally they are sporting a new H1 chip that uses Bluetooth 5 to bring new features like “Hey Siri” support and better mic performance. The 2019 case also has support for wireless charging.
Technical Specifications
Weight:
- AirPods (each) - 0.14 ounces (4 g)
- Charging Case - 1.41 ounces (40 g)
Dimensions:
- AirPods (each) - 0.65 by 0.71 by 1.59 inches (16.5 by 18.0 by 40.5 mm)
- Charging Case - 1.74 by 0.84 by 2.11 inches (44.3 by 21.3 by 53.5 mm)
Connectivity:
- AirPods - Bluetooth
- Charging Case - Lightning connector
Sensors:
- Dual beam-forming microphones
- Dual optical sensors
- Motion-detecting accelerometer
- Speech-detecting accelerometer
