2006-2011 Honda Civic Key FOB Battery Replacement

Автор: Erika Caushi
  • Комментарии: 5
2006-2011 Honda Civic Key FOB Battery Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 - 10 минут

Введение

In this guide, we will replace the battery of a 2006-2011 Honda Civic key FOB. This is a fairly simple project that can be completed rather than potentially spending a minimum of $90 on a replacement.

Инструменты

Запчасти

  1. FpHKeJrTqivqKXgl

    • Using the Phillips #0 screwdriver, remove the single screw from the bottom of the key FOB.

  2. MvOCqLKFsD5kpOj4

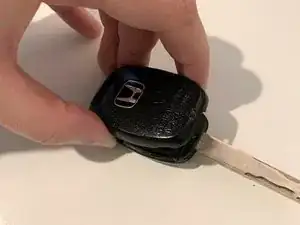

    • Gently lift the outer shell and remove it from the rest of the device.

    • Be careful not to break the clip located at the hole for the key ring that holds the shell in place.

  3. WKovW4XiTxjwt1tt

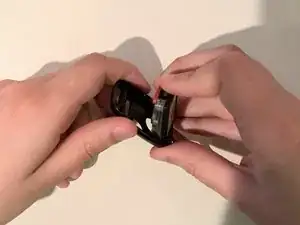

    • Remove the inner shell from the outer shell by pushing the buttons to loosen the inner shell.

  4. CoYjRJALMBElSMKn

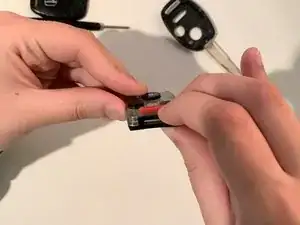

    • Unclasp the inner shell using the clips on the top and bottom.

    • Careful as to not break the clips as it keeps moisture, dust, and dirt from entering the delicate electronics.

  5. de3ueOynWAHduvDD

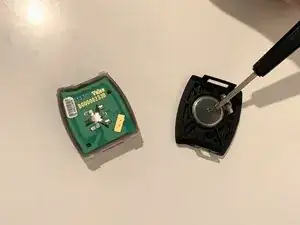

    • Remove the battery inside of the inner shell of the key FOB.

    • If the battery is corroded, make sure to wear gloves due to battery acid.

    • Do not puncture the battery when removing the old one/placing a new one.

    What size is What size battery do I replace the battery will

    G Brown -

  6. NywGJtZBfFEYWWfj

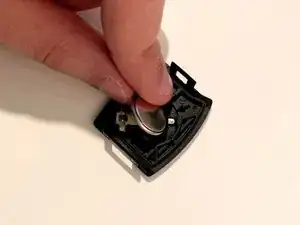

    • Replace the old battery with a new one.

    What size battery do I use

    G Brown -

    The battery I removed says 1818, so not sure 1616 is correct. Do the numbers vary by manufacturer? Mine says Panasonic CR 1828.

    D. J. Stavropoulos -

    Perfect instructions! Got the battery Panasonic 1616 3V from Amazon 24.95 for 2 and within 20 mins...both key fobs were replaced and works great. Thanks!!!!

    Mabon1998 -

    My 2007 honda civic had Panasonic CR 1616, 3V battery.

    Giordano Bruno -

Заключение

To reassemble your key FOB, follow these instructions in reverse order.
