Acer Chromebook C710-2856 Hard Drive Replacement

Автор: Josh Rowell
  • Комментарии: 0
Acer Chromebook C710-2856 Hard Drive Replacement

Сложность

Easy

Шаги

5

Необходимое время

10 - 20 минут

Введение

Once your hard drive fails, it's pretty simple to replace! Just follow this guide to replace the hard drive in your device.

  1. WVcSA3NbSQrjPeqV
    WVcSA3NbSQrjPeqV
    balh5mgnOFGghcx1

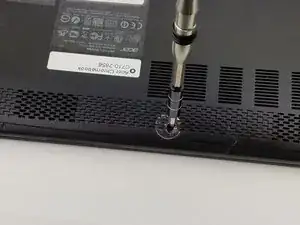

    • Remove the one 4.3mm Phillips #1 screw holding the back cover on.

  2. C4F2UulDTCnROyU1

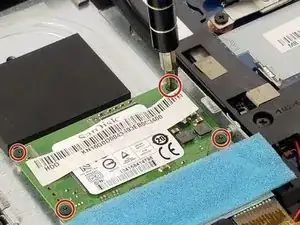

    • Remove the four 2.8mm Phillips #000 screws holding the drive onto the case.

  3. wVAShSfDx5WiJ4w5

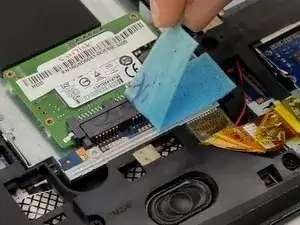

    • Gently pull the foam protector away from the pin connectors

  4. TrSB4i5BNkKqCIZB
    TrSB4i5BNkKqCIZB
    yLrH4pFCwcXwFpcq

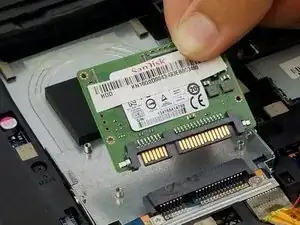

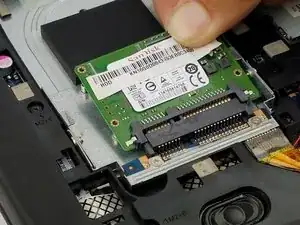

    • Gently pull the drive up and away to disconnect the hard drive from its seat

  5. 2IgasYGjn5bcibBW

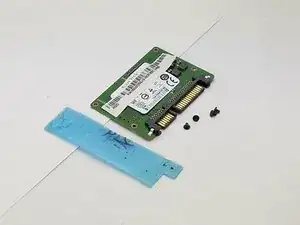

    • Fully removed hard drive, screws, and foam cover

Заключение

To reassemble your device, follow these instructions in reverse order.
