Alienware 17 R3 Hard Drive Replacement

Автор: Jonathon Tschurwald
  • Комментарии: 0
Alienware 17 R3 Hard Drive Replacement

Сложность

Easy

Шаги

8

Необходимое время

5 - 10 минут

Введение

This guide will show you how to replace the Hard Drive for your Alienware 17 R3 laptop. Ensure you have all the necessary tools before starting.

  1. IABZiiscS1STMJCG

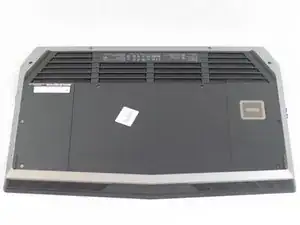

    • Turn the computer off.

    • Disconnect the charging cable from the computer.

    • Failure to unplug the charging cable could result in damaging the computer or seriously injuring yourself.

    • Wear the anti-static wrist strap to prevent any electrical shock to the components. Shocks may damage the components.

  2. dRiHsdwHLqtfVFWE

    • Unscrew and remove the two 4mm Phillips #1 screws from the cover.

  3. wZx5rZNTgRxPFAUm

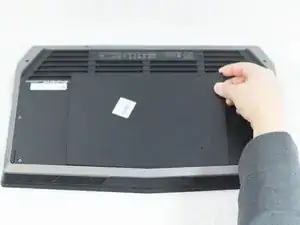

    • Pull up and slide the cover off.

  4. tbxgv2qt5HOP2bBH
    tbxgv2qt5HOP2bBH
    GW6OgfrlfmCELvGB

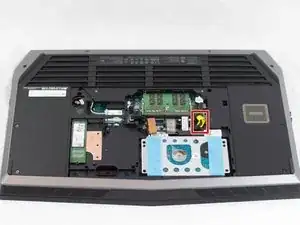

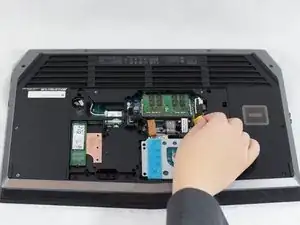

    • Unplug the black wire with the yellow tag to disconnect the battery.

  5. oFbt41L6fqPWUoXH
    oFbt41L6fqPWUoXH
    wdOX4RywMvOxbKpY

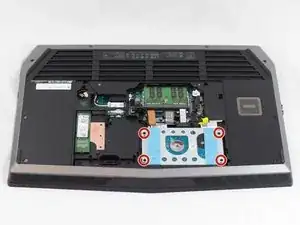

    • Unscrew and remove the four 3mm Phillips #1 screws holding the hard drive in place.

  6. vwLCjO6ZpVUYQEQN
    vwLCjO6ZpVUYQEQN
    NRpb3PpUXIhnsllS

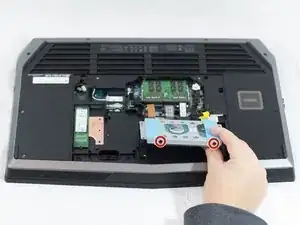

    • Unscrew and remove the four 2mm Phillips #1 screws holding the casing together.

  7. ySPtePYGvbRWaRfr

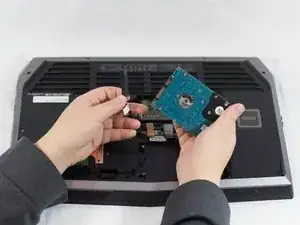

    • Remove the plug from the Hard Drive.

  8. EVPuNk4HuWfhNHRo

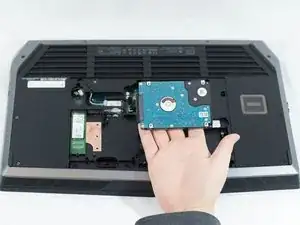

    • Lift the Hard Drive out.

Заключение

To reassemble your device, follow these instructions in reverse order.
