Введение

In this guide, we will demonstrate how to replace the battery pack in your SmartClean robot vacuum. The replacement process is fairly easy and no specialized tools are required.

Инструменты

  1. 6IUNHrFEpBYmKxLq
  2. eDGofHbDfRlglFYM

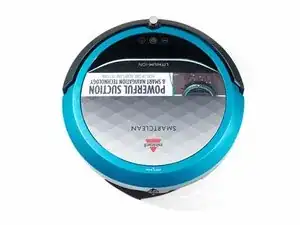

    • Turn the power switch to the OFF position.

    • Gently turn the unit over.

  3. pXMweNqPxjTygAob

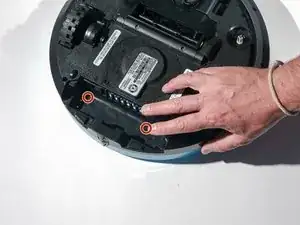

    • Press on the 2 circles of the battery cover.

    • Slide the battery cover toward you.

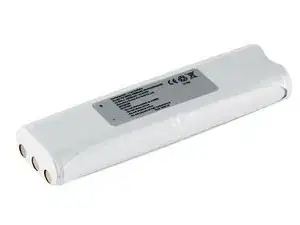

    • Remove the old battery

    • Do not remove the plastic sleeve from the battery pack.

Заключение

To reassemble your device, follow these instructions in reverse order.
