Bissell SpotBot Pet Repair Brush Motor Replacement

Автор: Anthony Bonvino
  • Комментарии: 1
Bissell SpotBot Pet Repair Brush Motor Replacement

Сложность

Moderate

Шаги

11

Необходимое время

30 минут - 1 час

Введение

This guide displays a step-by-step process of how a broken or faulty brush motor on the Bissell SpotBot Pet Repair Brush can be replaced and returned it back to its normal function.

Инструменты

  1. BIoxqyLwqbhwAXtm

    • First, set your Bissell SpotBot Pet on a flat surface to begin your repair.

  2. onWbifIpYI1LukKQ

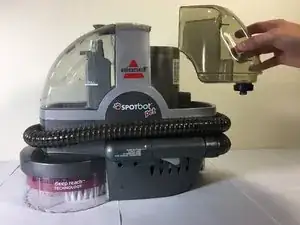

    • Lift the right container vertically to remove it from the vacuum.

  3. uhFpoHPIsq4QkS5b
    uhFpoHPIsq4QkS5b
    PZFrSi2rjtMiINIS

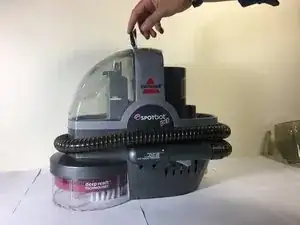

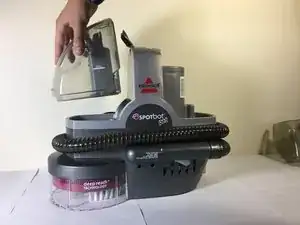

    • Gently lift up the tab on the top of the vacuum and then proceed to lift the left container straight up to release it.

  4. m2Uo1xlcI6UHQiXo

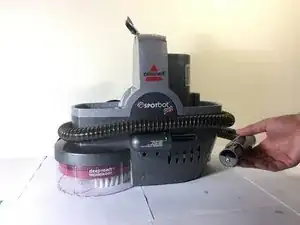

    • Remove the tube from the vacuum by sliding the tube out of its holder on the side.

  5. 1c2DjKgCSKXWucbg
    1c2DjKgCSKXWucbg
    QNrGfmDvdkWeMhsh

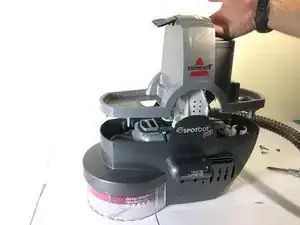

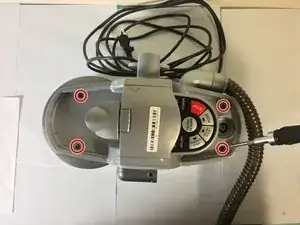

    • Unscrew the 4 screws on the top of the device and gently lift the top half up.

    • A ribbon cable is still attached to the underside of the top half.

  6. UCAIpJyAQOLexGAU
    UCAIpJyAQOLexGAU
    sRFx4aD36H4MDlqH
    ANHEgvy3HIy3aFKo

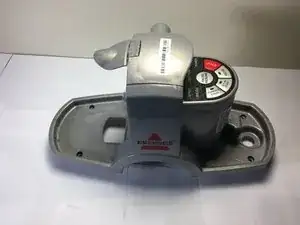

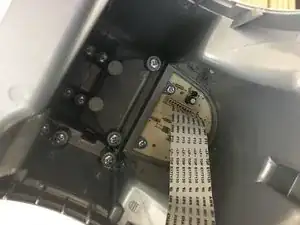

    • Unplug the ribbon cable that connects the bottom half to the control panel on the top half. Then, set the top half off to the side.

  7. WKZmtLaCCOILHOJT
    WKZmtLaCCOILHOJT
    KonVcDD22bhwrMNG

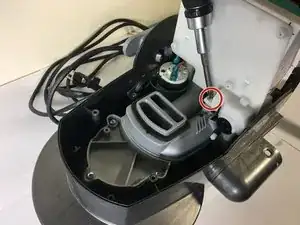

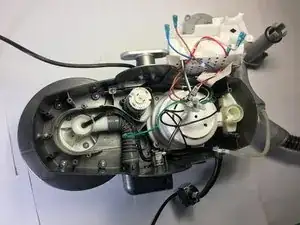

    • Unscrew the screw next to the white plastic wiring harness box. This will then allow you to set the white box off to the side.

  8. kwMIXGYTypIMtIdp

    • Unscrew the screws on the plastic holder on the right side of the device. Once this is done, remove the plastic holder from the vacuum.

    • Unscrew the screws that mount the vacuum motor to the device as shown.

  9. 3VySQNNcBXHJK2na
    3VySQNNcBXHJK2na
    MhbuosjFE6DTCLyf

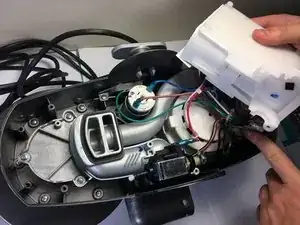

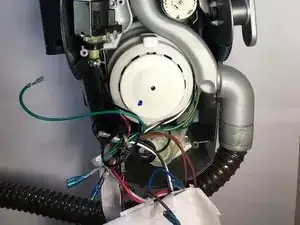

    • Unplug the wires by disconnecting the section that connects the motor to the wiring harness.

  10. 2jGMsxGJSNVSNROD
    2jGMsxGJSNVSNROD
    v6I4JYdOQZYQxPZT

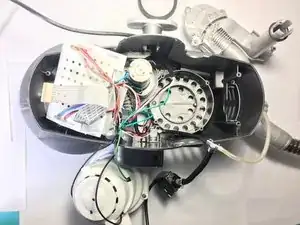

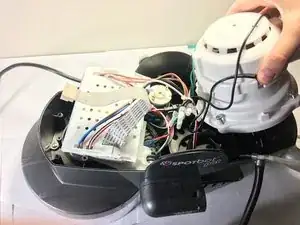

    • Lift the white suction motor from the right side of the device. Lift it straight up and set it off to the side of the vacuum.

  11. 5YRYL2r3ZPCK3JbF
    5YRYL2r3ZPCK3JbF
    VFrnNn65owfb1LmC

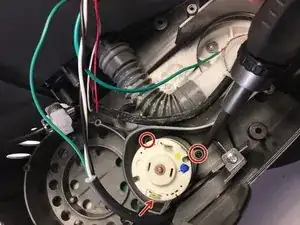

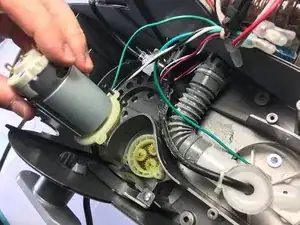

    • Unscrew the screws for the brush motor as shown, this motor controls the automatic scrubbing mechanism.

Заключение

To reassemble your device, follow these instructions in reverse order.
