Bose SoundDock Portable v2 IR Receiver Replacement

Автор: Evan Low
  • Комментарии: 2
Bose SoundDock Portable v2 IR Receiver Replacement

Сложность

Moderate

Шаги

3

Необходимое время

3 - 5 минут

Введение

This guide will help you replace the IR receiver in your Bose speaker.

  1. 4DU3aqkoWRUKRRWr
    4DU3aqkoWRUKRRWr
    RFJ2sXvqvUxxVeRO
    lrgcMIJlDIxq6GIL

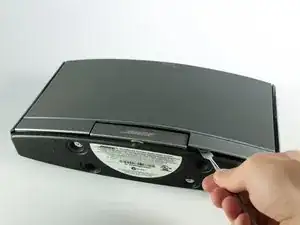

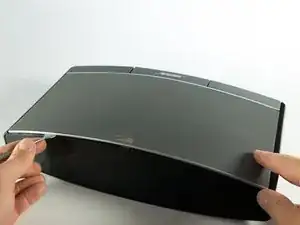

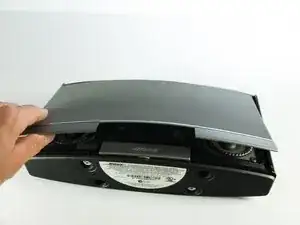

    • Gently pry the front mesh cover off of the sound dock using a metal spudger.

    • The mesh is held on by small velcro strips so if you hear a tearing sound it is just the velcro coming apart.

  2. O3WIJWdwskHCZbA6

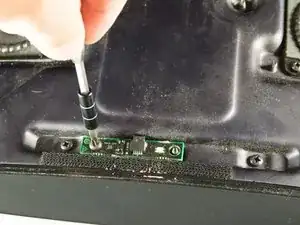

    • Using a T15 torx screwdriver, remove the 8mm screw holding the IR sensor to the speaker system.

  3. HJx4qdXvBl6jAevN

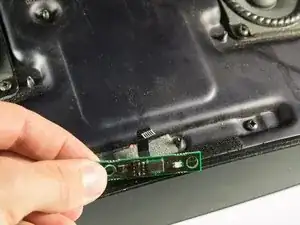

    • Using tweezers or your fingers, gently remove the ribbon cable connecting the IR sensor to the system.

    I have bose sound duck portable. Remote are not working I was try to othere remote it's in side the bose spekers in self not working I got new censer still not working what I will it's be mouther brod in side problem any idea how to fixe the remote controls

    Mssu Mssujohn -

Заключение

To reassemble your device, follow these instructions in reverse order.
