Clarke Floor Sander 07014A 2012 Blower Housing Replacement

Автор: Arthur Shi
  • Комментарии: 2
Clarke Floor Sander 07014A 2012 Blower Housing Replacement

Сложность

Moderate

Шаги

6

Необходимое время

Нет оценки

Введение

This guide shows how to remove and replace the blower housing for a Clarke Floor Sander 07014A.

  1. LY2SXYvYj3wa4kT1
    LY2SXYvYj3wa4kT1
    sccVXIFnciYAPPBH

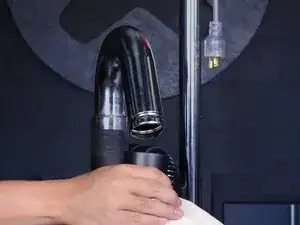

    • Before you begin, be sure that the sander is unplugged and powered off.

    • Twist and pull the dust bag collar to disconnect it from the elbow pipe.

    • Remove the dust bag.

  2. UlQNb5yPTFH6ggmk
    UlQNb5yPTFH6ggmk
    wRf5juBp2AJTqqlP

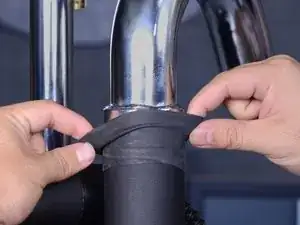

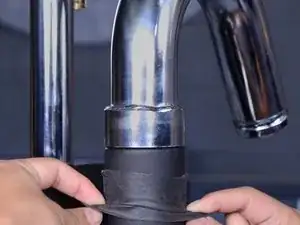

    • Peel the rubber sleeve down from the elbow pipe to reveal the pipe socket.

  3. MIoWLCMMVAvBXR2I
    MIoWLCMMVAvBXR2I
    k1xqm1TB5bxI5uoj
    WaMYsAYZ6FWkn6SH

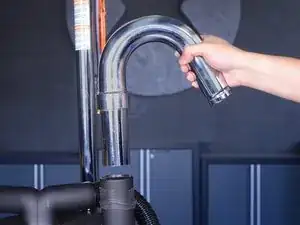

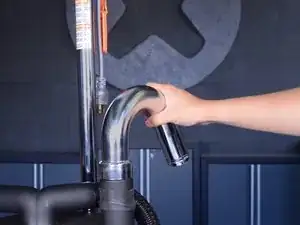

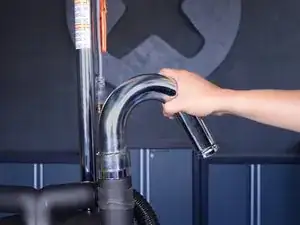

    • Grasp the elbow pipe with your hands and pull up while twisting to disconnect it from the blower housing.

    • Remove the elbow pipe.

    How do we order a replacement dust bag? barnrouse@yahoo.com

    TIMOTHY -

  4. cnBPtsSTYSfGeOnS
    cnBPtsSTYSfGeOnS
    FOGDhWHkkUW1OkgO
    pIDwgEQURnuROdd1

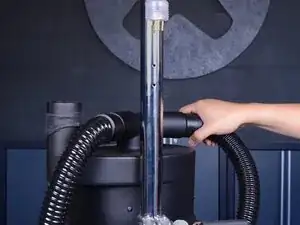

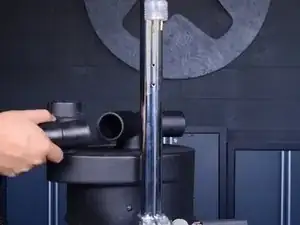

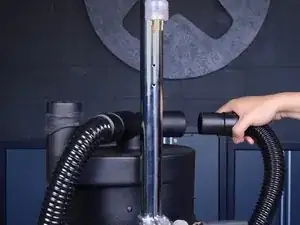

    • Twist and pull to disconnect both suction hoses from the blower housing.

  5. vwgkXA3Ps3GBwLeO
    vwgkXA3Ps3GBwLeO
    OfojQ6LpHTwheEsC

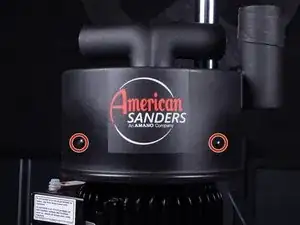

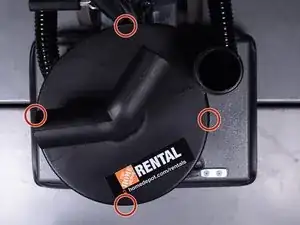

    • Remove the four 22mm long Phillips screws around the side of the blower housing.

  6. ibhRDUGMWRNjl1wD
    ibhRDUGMWRNjl1wD
    SUL43XZX2OkTSBwq

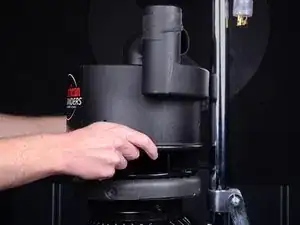

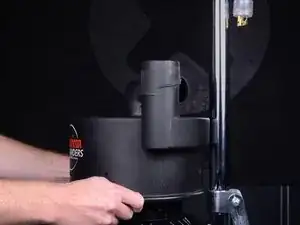

    • Lift the blower housing upwards and slide it off of the blower assembly.

    • Remove the blower housing.

Заключение

To reassemble your device, follow these instructions in reverse order.
