Disassembling Pentax PZ-10 Top Cover

Автор: Jonathan Diaz
  • Комментарии: 1
Disassembling Pentax PZ-10 Top Cover

Сложность

Moderate

Шаги

5

Необходимое время

10 минут

Введение

This guide is a prerequisite guide to enable access to features under the top casing for maintenance, repair, and replacement. The top cover encases the top features of the device except the flash and shutter button.

Инструменты

  1. rtLYd2DFRBbfprxu

    • The top cover is one piece encasing the top of the device except the shutter release button and flash.

  2. MgY4Lhgbc2EpA1dq
    MgY4Lhgbc2EpA1dq
    bNfdbVQJhPETHKf3

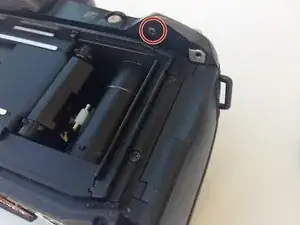

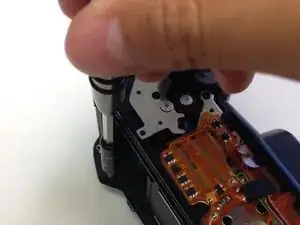

    • With the camera lens face down, locate the screw under the overhanging piece of the top casing on the right side of the back panel.

    • Using the J0 screwdriver, remove the 6.3 mm screw.

  3. VmpwKq3pkuixMkRP
    VmpwKq3pkuixMkRP
    HKoKtYUYhkFiJNTU

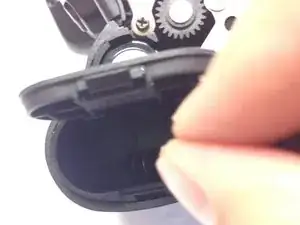

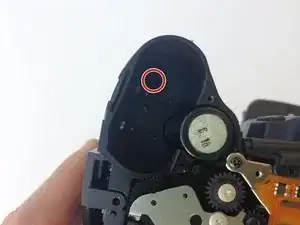

    • Locate the next screw by holding the camera upside down with the battery compartment empty and face up.

    • Remove the 6.3 mm screw using a J0 screwdriver.

  4. E45N2Selci6triEX
    E45N2Selci6triEX
    V3aKtFOiSWyxaC5K

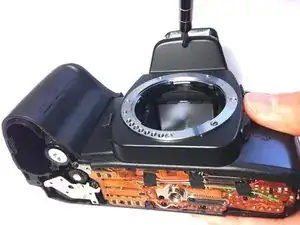

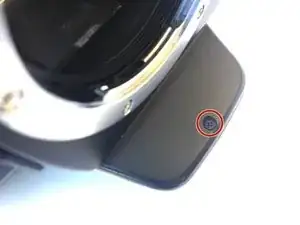

    • The next screw is found in the overhanging piece just above the lens.

    • With the top of the camera facing down, remove the 3.4 mm screw with a J0 screwdriver.

  5. u3EDoJ6RPybOJI5p
    u3EDoJ6RPybOJI5p
    psNPvUOQlsLFnsvE

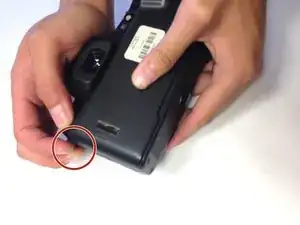

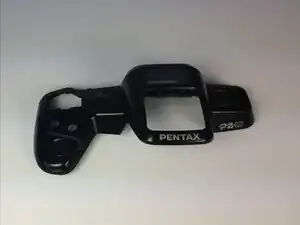

    • Gently pull off the top cover with your hands by pulling on the tab on the left of the camera.

Заключение

To reassemble your device, follow these instructions in reverse order.
