Disassembling Samsung SPH-A760 Logic Board

Сложность

Moderate

Шаги

7

Необходимое время

1 минута

Введение

How to get to and remove the logic board

  1. jebwdkg2B4F4IHpU
    jebwdkg2B4F4IHpU
    qOeyM5PJFlCBgVWo

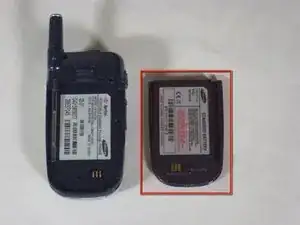

    • Push open the latch and remove the battery.

  2. LI4GFkpWlRlL6tE5
    LI4GFkpWlRlL6tE5
    cLpMKLcJY2ECMPGm

    • Twist off the antenna.

    • Pop off the transparent cylinder.

  3. pxSnIZwNHfXV3PaI

    • Remove the five screws as shown.

  4. PmPCQv2yWnfgZQWP

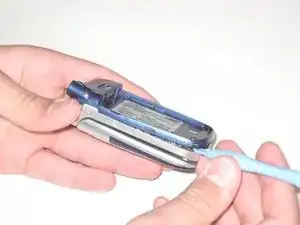

    • Carefully pry the back plate off.

  5. vcMChtlwfCro3CCK
    vcMChtlwfCro3CCK
    VhjBu5aDwmkUhXs2

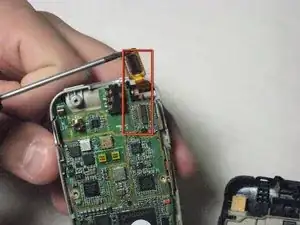

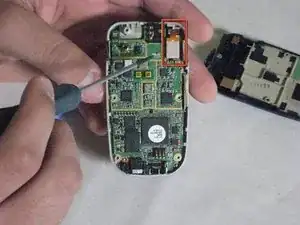

    • Carefully detach golden screen connector.

  6. MVJXIUYwUMiundF2
    MVJXIUYwUMiundF2
    Lk3CONrqLB6XZNOL

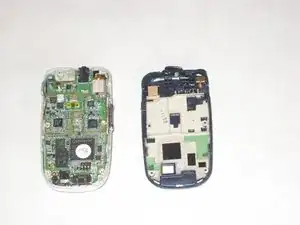

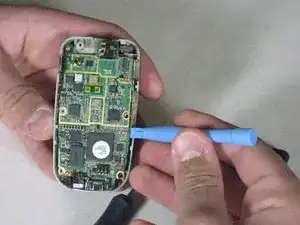

    • Pop out the logic board with spudger.

    • Caution: Do not touch with bare hands, use tweezers or wash hands before contact.

  7. 4YcCD411KL5MY5Ba
    4YcCD411KL5MY5Ba
    DyFlOPEPODEKZWDY

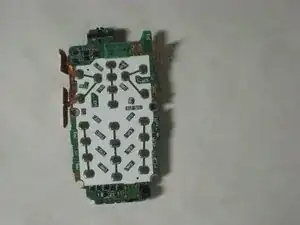

    • Place the logic board on a clean tray.

Заключение

To reassemble your device, follow these instructions in reverse order.
