Dymo LabelManager 280 Screen Replacement

Автор: Steven Nguyen
  • Комментарии: 2
Dymo LabelManager 280 Screen Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 минут

Введение

This guide helps open the device and get to the screen to replace it.

  1. Xfm24OhBtDXopCEZ
    Xfm24OhBtDXopCEZ
    F5kw1AMTXmqbYqWX

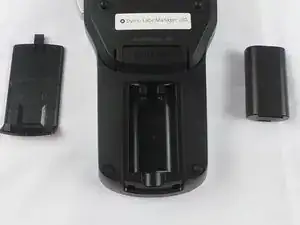

    • Remove battery.

    • Remove the label cassette.

  2. WMigDnNISAwDqfQI
    WMigDnNISAwDqfQI
    Cd1VAAmVG2w3hDhf

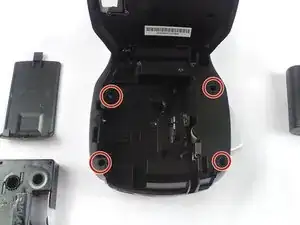

    • Remove the 6 screws in the indicated places. These particular screws are 2mm x 8mm Phillips #0 head

  3. uhgeMAJHjowcuvLp
    uhgeMAJHjowcuvLp
    HQFSOFJxnDNvMWOg

    • Use the spudger to take apart the device by insterting it as shown in the picture and twisting it. This should be done all around the device to ensure the two parts split correctly.

    • The keys/buttons highlighted in the second picture fall out easily so be careful. Keep device faced down in order to keep them from falling.

  4. sRIvat2WAWN3bhBp

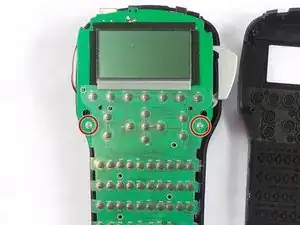

    • Further remove the 2 screws (1.2mm X 4mm Phillips #0 head).

    Hi where do I get a screen? And what sort am I looking for?

    Alan Hall -

  5. 3smIpA2Ov6GXQOav
    3smIpA2Ov6GXQOav
    y35iVdaODVVUS5Po

    • Detach the ribbon cable.

  6. Ov3Lwtq5XAdfPqBv

    • Remove the screen.

Заключение

To reassemble your device, follow these instructions in reverse order.
