Eco X Gear Voice Coil Replacement

Сложность

Moderate

Шаги

7

Необходимое время

25 минут

Введение

You will need a phillips head screw driver and needle nose pliers to complete this task. Before opening the device, ensure that there is no power to avoid damaging the electronics or harming yourself.

  1. rT1QeLQjV1tJV5kZ

    • Disconnect any power source and/or turn off device.

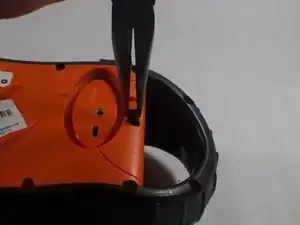

  2. MyF5D5ZsmO4YC6o2

    • Remove the 15 rubber plugs from the cavities using needle nose pliers.

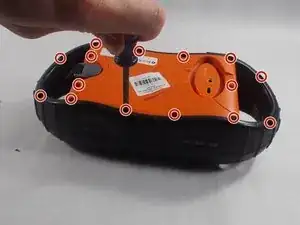

  3. MFJihdcbkWrBRThH

    • Use a phillips head screwdriver to remove the fifteen 6.4mm screws.

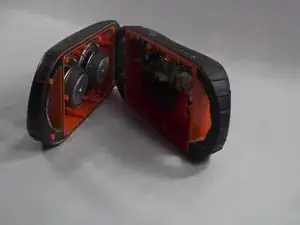

  4. IwpPuAOGbvngpOAb

    • Carefully separate the two sections of the frame.

    • Wires still connect the two sections. Be cautious to avoid damaging the wires, terminals, and electronics.

  5. WWxUWOdsYUEOCSFW

    • Disconnect the wiring to improve accessibility to the cones.

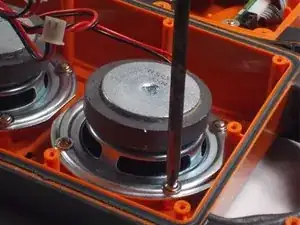

  6. GkFCbuyTDBAWoUC6
    GkFCbuyTDBAWoUC6

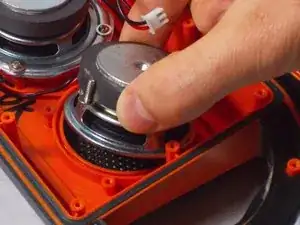

    PjKfvmY2CVNmL2lu

    • Remove the four screws that hold down the speaker and pry up the speaker from the frame.

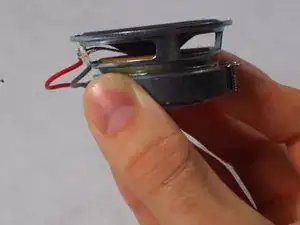

  7. Wen1ZXSCmAULQkxN

    • Once the voice coil is removed, solder it back onto the bracket or replace the voice coil entirely.

Заключение

To reassemble your device, follow these instructions in reverse order.
