Eureka EasyClean 71C Brush Roller Replacement

Автор: Tanner Durnil
  • Комментарии: 1
Eureka EasyClean 71C Brush Roller Replacement

Сложность

Moderate

Шаги

5

Необходимое время

5 минут

Введение

The roller can get worn out over time. Therefore, it’s important to know how to replace it. This guide will cover the steps necessary to successfully replace the roller. Make sure your vacuum is off before attempting to replace the roller.

  1. ODTpitlvTRZOQTLw

    • Unscrew the two 18.1 mm PH2 Phillips head screws on the bottom of the vacuum.

  2. PmUaOAGXDMI5al6G

    • Pry off the Riser Visor using the plastic opening tool.

  3. 63npSLIoDVddugqk

    • Remove the screw cap using the metal spudger.

    • First-time removal of the screw cap can be difficult. The screw cap isn’t vital, so don’t worry about damaging the screw cap and just keep trying until it comes out.

  4. vphL3kAEymmRoNDu
    vphL3kAEymmRoNDu
    EuIGfiveFhVijYuO

    • Unscrew the 14mm PH2 Phillips head screw.

    • Pull the bottom cover off of the rest of the casing.

  5. KGRHbnLMPiumlMK3
    KGRHbnLMPiumlMK3
    XWWmphLOH2Vw2gcn

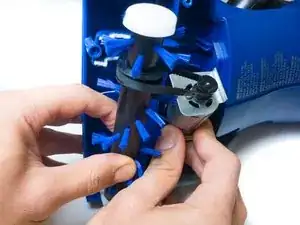

    • Pull the roller, motor, and belt out of the casing.

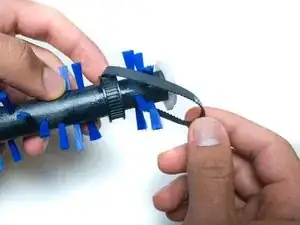

    • Separate the roller from the belt.

    Hello- do you know the PN# to the roller/Gear that is on the motor? eureka Mod 71

    Thanks

    taibiservent@gmail.com

    Tony

    Tony Taibi -

Заключение

To reassemble your device, follow these instructions in reverse order.
