FujiFilm FinePix A340 Motherboard Replacement

Сложность

Moderate

Шаги

12

Необходимое время

25 - 50 минут

Введение

How to remove and replace the logic board.

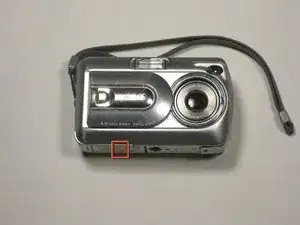

  1. Pkt3FmqJAJ4aQLDB

    • To prevent the danger of electric shock, remove the batteries before continuing to the next steps.

    • Slide the battery cover to the side to release the batteries.

  2. vmRqxIHXMXfnccM1
    vmRqxIHXMXfnccM1
    Fgu3NMD2PrESRQSM
    6yWExUFP3GMeI43j

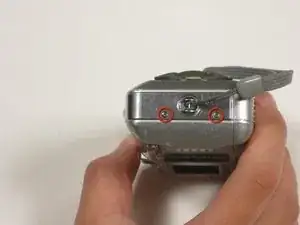

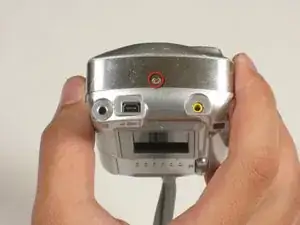

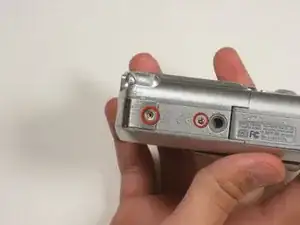

    • Remove the five screws from the camera casing using a tri-point Y0 screwdriver.

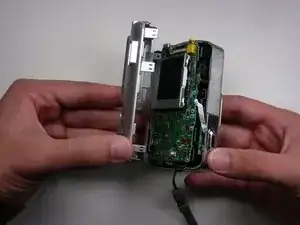

  3. fAhbFy25dmJLRN2h
    fAhbFy25dmJLRN2h
    wFY3hhf6RXgwDrsl

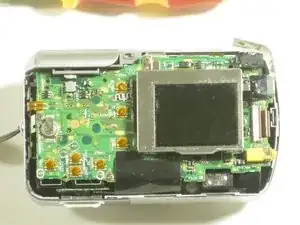

    • Grab the case with your hands and slowly pull back the outer casing.

  4. 4ajevGoBgvNcgrMu

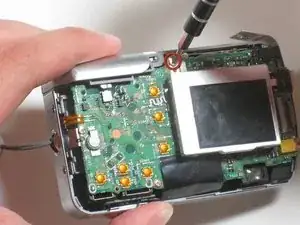

    • Locate the LCD screen and anchoring screw.

    • Remove screw.

  5. eQXTqDBGiQWjfHOq

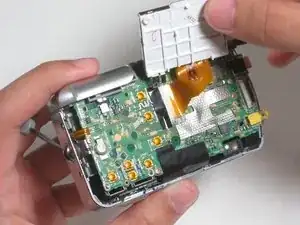

    • Carefully pull the LCD screen away from the board it is connected to.

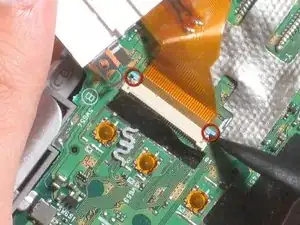

  6. HwIDHLHKLbqNmSMZ

    • Push both blue switches away from the holding device to detach the LCD ribbon.

    • Be careful when removing the ribbon. If you damage it, you will need to replace it as well.

  7. bMLVTGfgqxoHSQnS

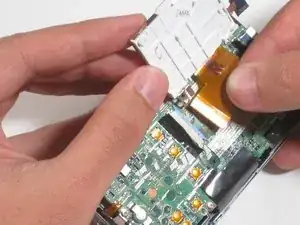

    • Carefully detach the ribbon from where it was connected by the blue pins.

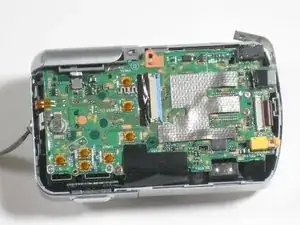

  8. E1BaJJrZ3cESyaiM

    • Now that everything has been disconnected from the board, remove LCD screen.

  9. TBJLP4wWVapldHRS

    • Remove the two screws holding the circuit board down.

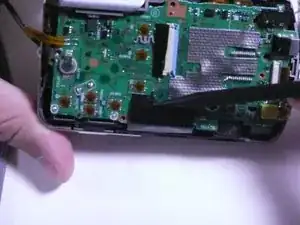

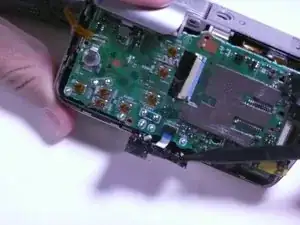

  10. xOlWPjj1wryHrk53
    xOlWPjj1wryHrk53
    AiUE5c5F5eGvCGuo

    • Remove the black sticky tape from the circuit board and camera case.

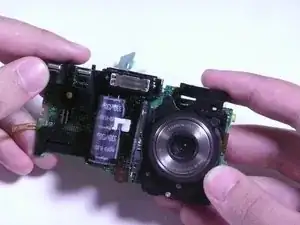

  11. UHUaTvOGPLURWbIY
    UHUaTvOGPLURWbIY
    ZnXU4N4YDBxMCABZ

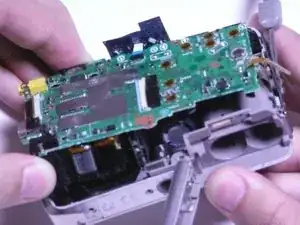

    • Gently pull the circuit board away from the front side of the camera.

    • Be careful when removing the assembly as to not break any solder leads or damage the lens assembly.

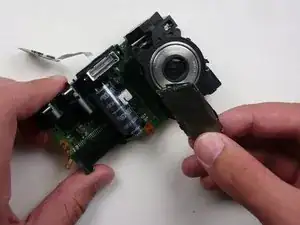

  12. gsOUCxgnKxyFIrus
    gsOUCxgnKxyFIrus
    qMu2OPBj3SLCeYS4

    • Remove the motherboard by pulling it straight away from the assembly.

Заключение

To reassemble your device, follow these instructions in reverse order.
