GameSir G7 SE Interior Face Plate Replacement

Автор: Memphis Collins
  • Комментарии: 0
GameSir G7 SE Interior Face Plate Replacement

Сложность

Easy

Шаги

3

Необходимое время

5 минут

Введение

This foundational guide is designed for the GameSir G7 SE, focusing on safely opening the device to access its internal components. Opening your GameSir G7 SE is the first step in any maintenance or repair task, allowing you to address issues from the inside out.

Before beginning, disconnect the controller to avoid any electrical risk. Be mindful that disassembling your device might void warranties.

  1. gMT2OWRFEieAKaIw

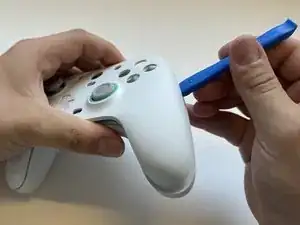

    • Remove the faceplate by prying upwards with a plastic opening tool.

    • This faceplate is magnetic and will be easy to come off.

  2. iPFL14icDv16tSww
    iPFL14icDv16tSww
    JjwaTPMDqA4nXZUT

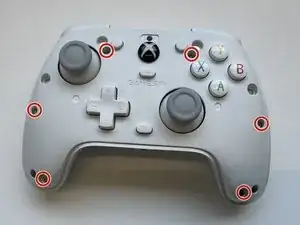

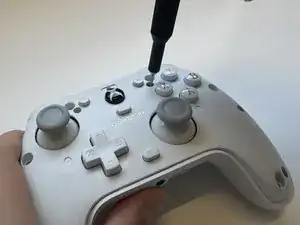

    • Use a T6 Torx Screwdriver to remove the six 9 mm screws from the interior face plate.

  3. LFnmCOeCIKxX1CxM
    LFnmCOeCIKxX1CxM
    xP6LnxPraYmECDmQ

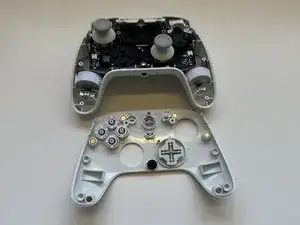

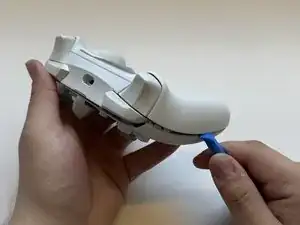

    • Using a plastic spudger tool, remove the interior face plate. Go around all the edges, prying downwards until it's removed.

    • Make sure to hold the controller upside down; otherwise the buttons will fall out.

Заключение

To reassemble your device, follow these instructions in reverse order.
