Greist Buttonholer Fork Arm Spring Replacement

Автор: Michael Sykes
  • Комментарии: 1
Greist Buttonholer Fork Arm Spring Replacement

Сложность

Moderate

Шаги

3

Необходимое время

Нет оценки

Введение

If the fork arm in The Buttonholer is not moving properly while being operated, chance are you need to replace the spring holding the arm.

Инструменты

  1. MMG4oNDS6uUABdOb
    MMG4oNDS6uUABdOb
    XR4dKOkwHQfyxSZU
    MF1HwBoxOE2A6Nis

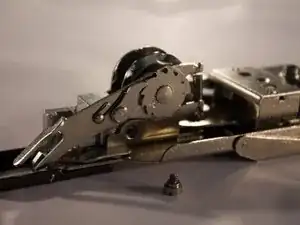

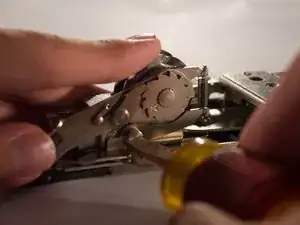

    • Unscrew the screw located underneath fork arm using a Flathead screwdriver.

  2. ickgWNg2SqSvnMyE
    ickgWNg2SqSvnMyE
    HYQplUpu3DCdgdND
    PTcrq5Yc3HStATPo

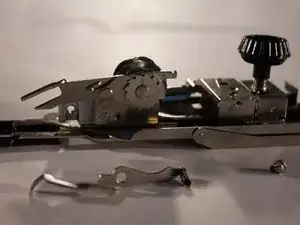

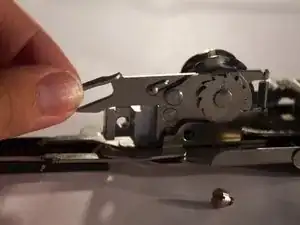

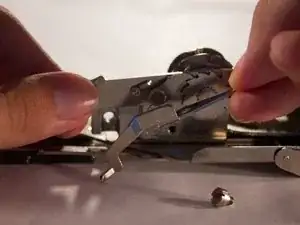

    • Raise the fork arm so that it is parallel with the upper hook.

    • Turn the lower hook towards you from the bottom, and remove.

  3. DrPh2k1kir12LGJf
    DrPh2k1kir12LGJf
    krbkIf5RVTm3IYyt

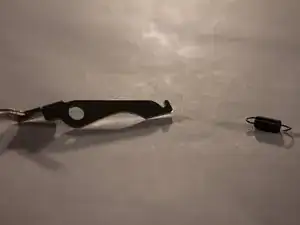

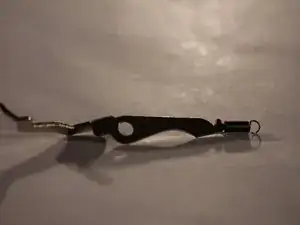

    • Remove the old spring from the hook.

    • Add the new spring to the hook.

Заключение

To reassemble your device, follow these instructions in reverse order.
