HP 15-ay091ms Back Panel Replacement

Автор: Kristen Gismondi
  • Комментарии: 0
HP 15-ay091ms Back Panel Replacement

Сложность

Moderate

Шаги

2

Необходимое время

Нет оценки

Введение

  1. 3QweAaQSXJWjqsAZ
    3QweAaQSXJWjqsAZ
    HQChKLR5PF1BtYDN

    • Ensure the device is powered off and is disconnected from any AC power supply.

    • Push the latches on either side of the battery down and outward.

    • This unlatches the battery allowing for easy removal.

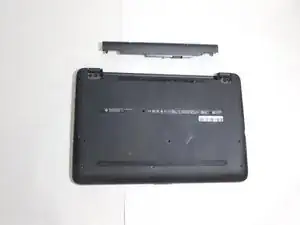

    • Remove the battery.

  2. 4vIbb6kkAcHJIVQN
    4vIbb6kkAcHJIVQN
    J1j6gBg1gxGNqEtB
    IWmv1EXVG5tETJMb

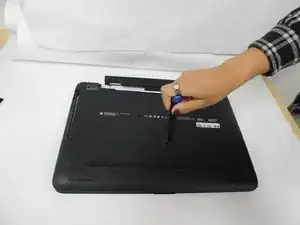

    • Remove the screws from the bottom panel using a JIS #0 screwdriver.

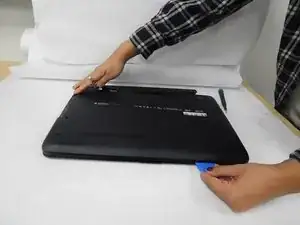

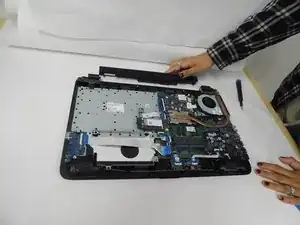

    • Use the iFixit opening pick to lift the back cover from the device.

    • It is helpful to get an opening in one spot of the back cover and carry that opening around the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
