HP 7 1800 Audio Jack Replacement

Автор: Trevor Shumate
  • Комментарии: 0
HP 7 1800 Audio Jack Replacement

Сложность

Moderate

Шаги

3

Необходимое время

5 - 10 минут

Введение

You will be disassembling the HP 7 1800 and using a soldering iron to replace the audio jack.

  1. kJKWQ4ZwxfKvfRAb
    kJKWQ4ZwxfKvfRAb
    4aCp3UCgpNPuTQIB

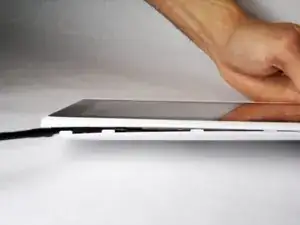

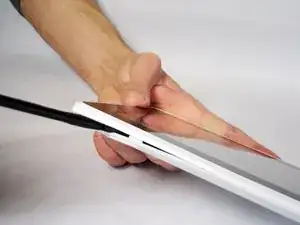

    • Use a Spudger to open the back panel. Be careful not to break the tabs.

  2. hCZfA55e2aKUgslF

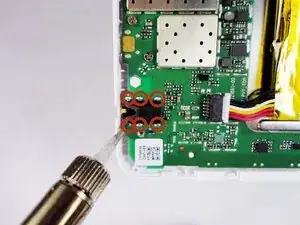

    • Desolder the top lead for the six solder points.

  3. W2TQbgGZYG5fmdQv

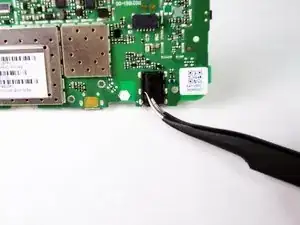

    • Once the solder is removed, gently pull the audio jack away from the motherboard with tweezers.

Заключение

To reassemble your device, follow these instructions in reverse order.
