HP Elitebook 820 G2 Battery Replacement

Автор: Wade
  • Комментарии: 0
HP Elitebook 820 G2 Battery Replacement

Сложность

Easy

Шаги

4

Необходимое время

1 - 5 минут

Введение

Battery life of electronic devices deteriorate over time. This guide will show you how to replace the battery of the HP Elitebook 820 G2 Battery

  1. FqxFy1bVeARtKUZS
    FqxFy1bVeARtKUZS
    nAfs5rwrUNDYWsLT

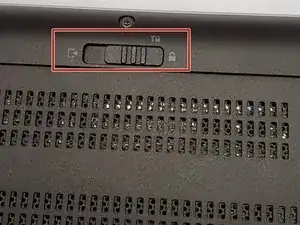

    • Slide the lever firmly to the left on the back panel.

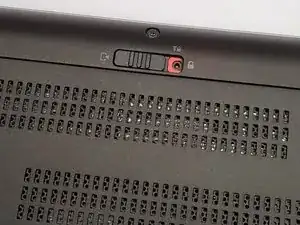

    • Once the back panel is unlocked, there should be red showing to the right of the lever.

  2. KLyUE5DZZTLAEIfT
    KLyUE5DZZTLAEIfT
    SYpk2nbHMv62WGky

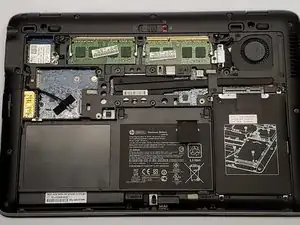

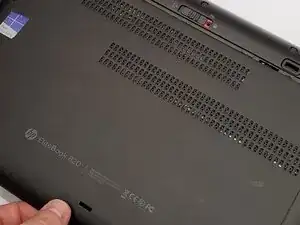

    • Slide the back panel towards you.

    • Lift the back panel to remove it.

  3. u2GNqTEJ56RNmRXm

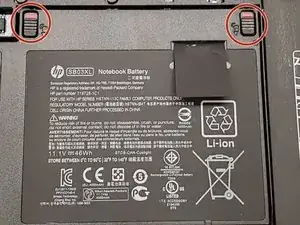

    • Unlock tabs on battery.

  4. uK3daXUX2kNHFqlL
    uK3daXUX2kNHFqlL
    FX6JEvjsBYVd6sYG

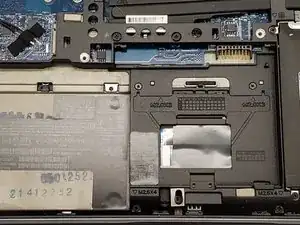

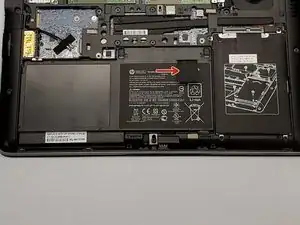

    • Lift tab and remove battery.

Заключение

To reassemble your device, follow these instructions in reverse order.
