Hisense Chromebook C11 Screen Replacement

Автор: Chelsea Charles
  • Комментарии: 0
Hisense Chromebook C11 Screen Replacement

Сложность

Easy

Шаги

8

Необходимое время

5 минут

Введение

This guide shows you the easy process of removing your laptop's display screen.

Before attempting to remove the screen, please determine whether the problem stems from the device's hardware or from its software. Refer to the troubleshooting guide for details: Hisense Chromebook C11 Troubleshooting.

  1. GwwGUeZb2Ge1wNJB

    • Turn off the laptop and disconnect it from power.

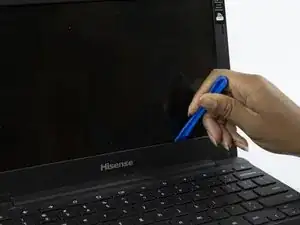

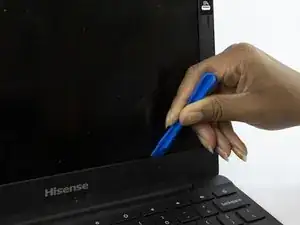

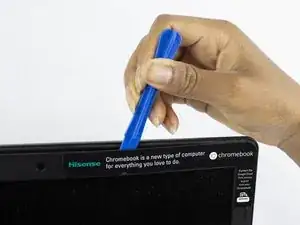

  2. AcX6NcjUQoZYM4wi
    AcX6NcjUQoZYM4wi
    RVqvNgACEhFag5hA
    HRwxUsod1UOpfLHW

    • Snap the plastic holds off of the screen protector using the plastic opening tool.

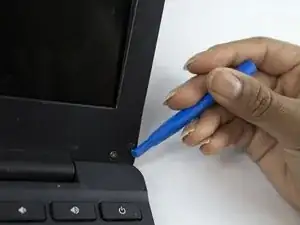

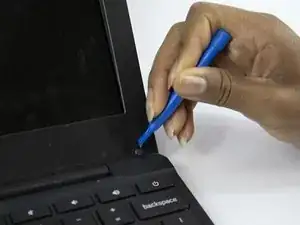

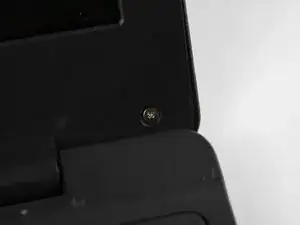

  3. GkisIOIpdxCw2wse
    GkisIOIpdxCw2wse
    JpaDuMHsPWQNhiOw
    M2OBQvqjLSJKaPos

    • Remove the screw caps.

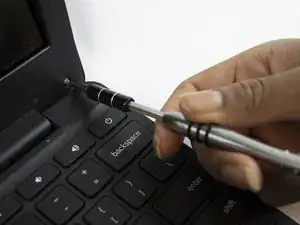

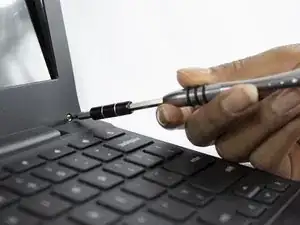

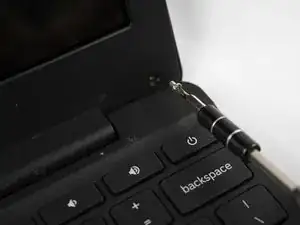

  4. TGQZcjQMWJYJKxno
    TGQZcjQMWJYJKxno
    PPtRjbdHmPHYIxKE
    KIXDEmKCOhya2KL2

    • Unscrew the screws with the Phillips #00 screwdriver and set them aside.

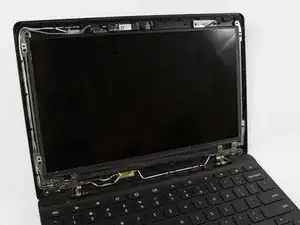

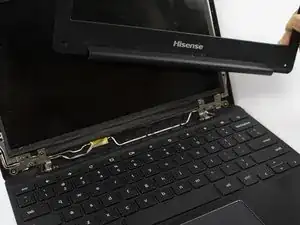

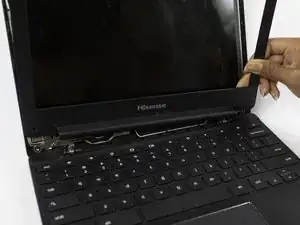

  5. QYC6CwIGZqxRQ2m4
    QYC6CwIGZqxRQ2m4
    LWtwdYUlRMPQxmII
    ag3jF6x663eLCYVV

    • Remove the screen protector.

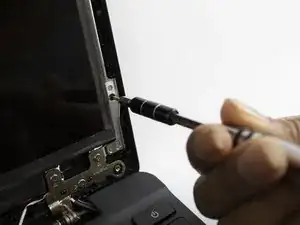

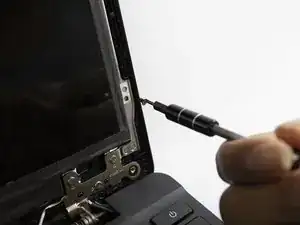

  6. PqT1m56SDHxUGQjh
    PqT1m56SDHxUGQjh
    VOdJeDNWWEqRMkGM

    • Unscrew the screen screws with the Phillips #000 screwdriver and set them aside. Be sure to support the screen protector in case it falls.

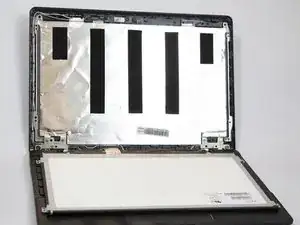

  7. ERdRbAnmnphmniRU
    ERdRbAnmnphmniRU
    VmYKWDUF13sGHNKv

    • Gently lay the screen down.

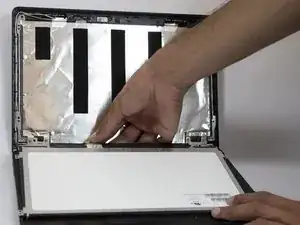

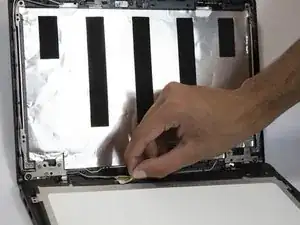

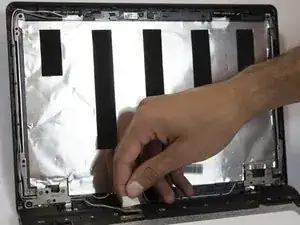

  8. vIubjrYtOZrIuPBX
    vIubjrYtOZrIuPBX
    eFVMIeNBdXFP2PLN
    Oiy2fU5KBh5RXllt

    • Disconnect the screen.

Заключение

To reassemble your device, follow these instructions in reverse order.
