Hover-1 XLS Back Seat Light Replacement

Автор: Christian Roberts
  • Комментарии: 0
Hover-1 XLS Back Seat Light Replacement

Сложность

Easy

Шаги

4

Необходимое время

3 - 6 минут

Введение

A broken light on a Hover-1 XLS bike is a safety hazard, especially if you use the bike when dark. Do not ride the bike with a broken tail light.

Инструменты

  1. GWAZYRKphFDk3UAt
    GWAZYRKphFDk3UAt
    R1wEJx6UyWkHff2N

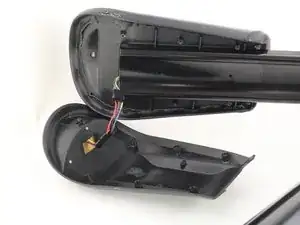

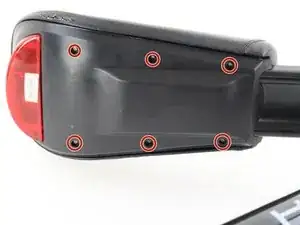

    • Remove the seat by removing the six 16mm screws with a Phillips #2 screwdriver.

    • Remember that the seat is still connected by the wiring once you unscrew it. Pulling too hard can damage the connector.

  2. jsNuhtndseONIJS1
    jsNuhtndseONIJS1
    SjJaMafJFkSDGdfH
    mG2UAPOK5GLwwwpU

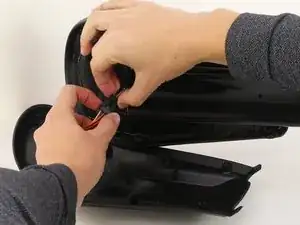

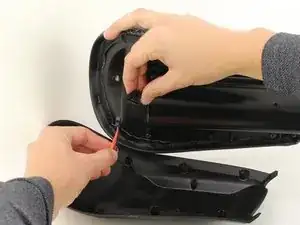

    • Disconnect the wires by pushing the levers on either side of the connector and on top.

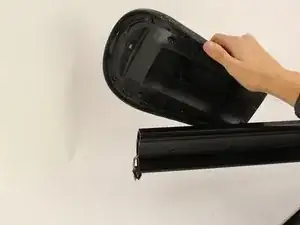

    • Remove the seat from the bike.

  3. KdyZnasYsHeAIsqm

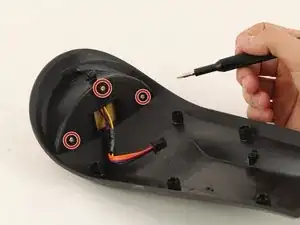

    • Use a Phillips #2 screwdriver to remove the four 10mm screws on the bottom of the back seat.

  4. TUIDBoHqMedS1MMZ
    TUIDBoHqMedS1MMZ
    dor1ypeAwWOdmOLR

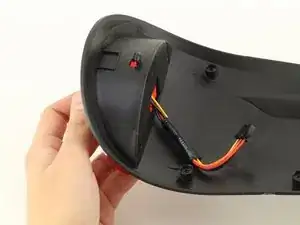

    • Pull the light from behind the bottom of the seat frame. Pull the wiring all the way through.

Заключение

To reassemble your device, follow these instructions in reverse order.
