How to Fix a Wobbly Wolf Warriors Gaming Chair Leg Rest

Автор: Anoop Shahi
  • Комментарии: 0
How to Fix a Wobbly Wolf Warriors Gaming Chair Leg Rest

Сложность

Easy

Шаги

8

Необходимое время

7 - 15 минут

Введение

This Fast Fix guide is a step by step instruction manual on how to repair an insecure leg rest on a Wolf Warriors gaming chair. With excessive use, leg rests may become wobbly and unstable. This guide outlines how to fix a Wolf Warriors gaming chair leg rest for ultimate comfort.

Инструменты

  1. AUwCdTuAX3IMs2wx
    AUwCdTuAX3IMs2wx
    gF4La6ZHxYcTgJx6

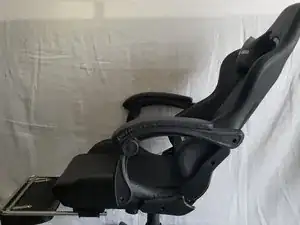

    • Lean back the chair and extend the leg rest completely.

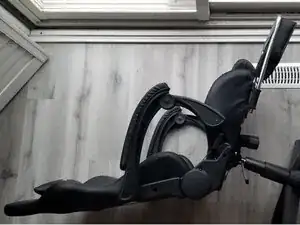

  2. XZlEx3OsR62bPV1K

    • Lay the chair on its side on the ground to allow easier access to the required hex screws and blocker screw.

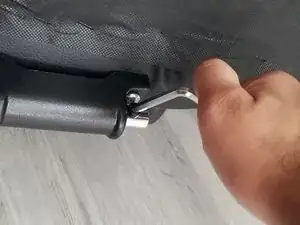

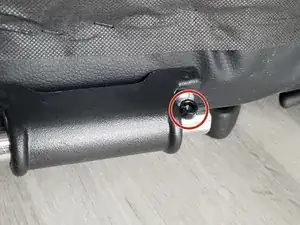

  3. JLjKqwyDhJXoLvAT
    JLjKqwyDhJXoLvAT
    5oQSbP1YtbU2qr4f
    fZsccBovWtyCePZO

    • Remove the 3 mm blocker screw using a 3mm Allen wrench/hex key.

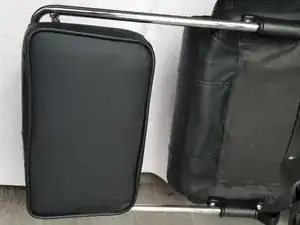

  4. NNYyboPyoFjEnpEm

    • Slide the leg rest out of the base.

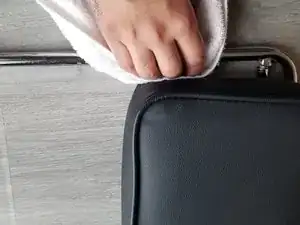

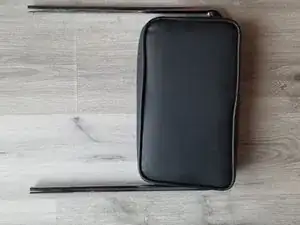

  5. HnwYgoCuScP1sNmx
    HnwYgoCuScP1sNmx
    gPMXKGyqARhqHVqt

    • Place the leg rest on a flat surface.

    • Wipe clean the sliding legs using a clean cloth to ensure the sliding mechanism has no issues.

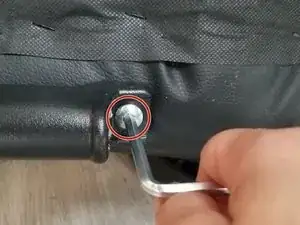

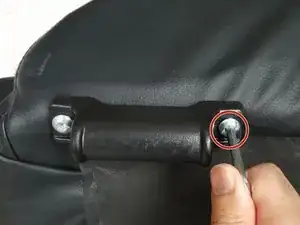

  6. 5mqSMHyHKlivHHLa
    5mqSMHyHKlivHHLa
    HJCydw6Ql2swBYwx
    eRfMy2RYWRbB1OHg

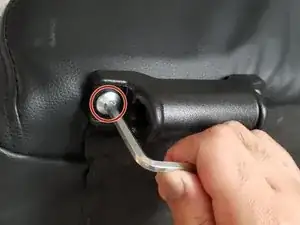

    • Tighten the four 25 mm hex screws located at the bottom of the chair using the 3 mm Allen key.

    • Be careful not to over tighten the 25 mm hex screws. This can cause the screw to become free from the base.

  7. FNtC5ZmXjVv2PgAK

    • Slide the leg rest back into the base.

  8. FiTHNYiGCgk1FJYc
    FiTHNYiGCgk1FJYc
    Qw1S6jRaJjfXMrvh

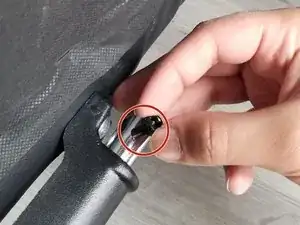

    • Screw the 3 mm blocker screw back in.

    • Flip your chair back up and enjoy your sturdy leg rest!

Заключение

To reassemble your device, follow these instructions in reverse order.
