IBM ThinkPad T42 Hard Drive Replacement

Автор: Austin Kidd
  • Комментарии: 1
IBM ThinkPad T42 Hard Drive Replacement

Сложность

Easy

Шаги

5

Необходимое время

5 - 10 минут

Введение

Replacing the Hard Drive

  1. DQJ1ylkTJWVguJeH

    • Flip the laptop over so the underside is facing you, then, release the 2 clips holding the battery on.

    • Make sure the laptop is off when you do this, sudden power outages can cause data corruption.

  2. aq2jFyfmODUwZFQT

    • Carefully grab the battery, then pull it straight out, not at an angle.

  3. nNWJIWnKvu56PMJr

    • Unscrew the single screw holding the drive cage in place.

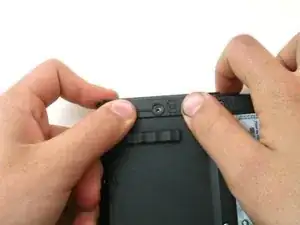

  4. YGo3ewstCjDmGkYU

    • Pull the hard drive out with of its bay the help of pictured ridges. Carefully remove it.

    • It might help to open the display slightly.

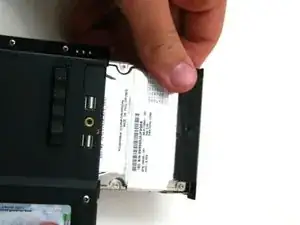

  5. lRyHEZoysmWRxWxD

    • Pull the Hard Drive out and proceed with replacement.

Заключение

To reassemble your device, follow these instructions in reverse order.
