LENOVO G70-35 Hard Drive Replacement

Автор: abdualmjeed Alabdurazzaq
  • Комментарии: 0
LENOVO G70-35 Hard Drive Replacement

Сложность

Easy

Шаги

4

Необходимое время

7 - 10 минут

Введение

This guide will help you replace the hard drive of your device.

  1. M6yF5yBJrmhZJo5P

    • Unscrew the two screws using a Phillips #0 screwdriver.

  2. PPRo4opBLsRkWQk4

    • Use a spudger to lift the back cover and remove it from the device.

  3. pDQVWsfBO4LIeEMG

    • Unscrew the four screws around the Hard Drive using a Phillips #0 screwdriver.

  4. LIBC3iWvbiAusDhB

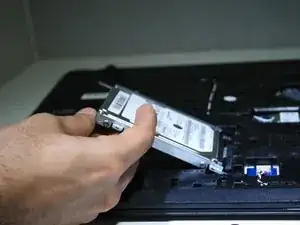

    • Slide the hard drive over and remove it from the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
