LENOVO G70-35Wi-Fi PCI Card Replacement

Автор: abdualmjeed Alabdurazzaq
  • Комментарии: 1
LENOVO G70-35Wi-Fi PCI Card Replacement

Сложность

Moderate

Шаги

5

Необходимое время

6 минут

Введение

This guide will help you with the process of replacing the Wi-Fi PCI Card in your device.

  1. M6yF5yBJrmhZJo5P

    • Unscrew the two screws using a Phillips #0 screwdriver.

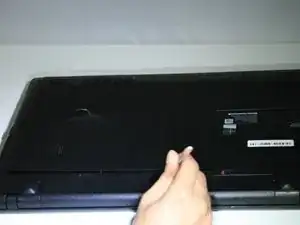

  2. PPRo4opBLsRkWQk4

    • Use a spudger to lift the back cover and remove it from the device.

  3. VJt6FOoRqfgqiQOm

    • Unplug the two wires that are on the Wi-Fi PCI card (white & black).

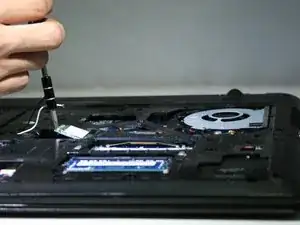

  4. p6RiUiXBO3mANFpS

    • Unscrew the single screw in front of the Wi-Fi PCI card using the Phillips #0 screwdriver.

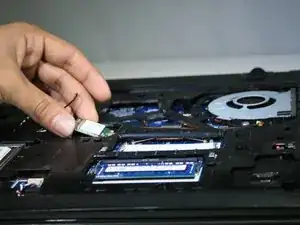

  5. r5lC3GFTuj4aE2jj

    • Remove the Wi-Fi PCI card from the device.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

abdualmjeed Alabdurazzaq

Участник c: 16/01/18

507 Репутация

Один комментарий

Can this slot be used for anything other than the Wifi PCI card? Such as a TC SUNBOW 512GB 42mm? Or perhaps another 42mm SSD?

Michael Vella -
