LG Tribute Front Facing Camera Replacement

Сложность

Moderate

Шаги

5

Необходимое время

20 минут

Введение

This guide will teach you how to properly replace the front facing camera in the phone.

  1. nWxpqPZABHZUwueM
    nWxpqPZABHZUwueM
    JkMjvulTaQOOfEEu

    • Use the plastic opening tool to pry off the back cover.

  2. kgYnOto1tYbI3KqT

    • Lift the battery out of place.

    • When replacing the battery, the (+) and (-) symbols must match up with the phone's charging nodes.

  3. wBkjWPtTkZDEx5dZ
    wBkjWPtTkZDEx5dZ
    FlPXvqQnuEIHedeG

    • Remove eight 4mm screws using a Phillips head 000 screwdriver (PH000).

  4. PSnTCUqAuOIxLAfG
    PSnTCUqAuOIxLAfG
    sQDlwFLXJTejSppS

    • Use a plastic opening tool to loosen the tabs around the edge of the phone.

    • Inserting a thin piece of plastic will help prevent opened tabs from locking back into place.

    • This step can be frustrating, but requires patience. Avoid the temptation to pry the panel loose. Using excessive force may break the delicate tabs.

  5. YALmUaAPfACr2BwO
    YALmUaAPfACr2BwO
    VXdRZcZTVKoXbsKA

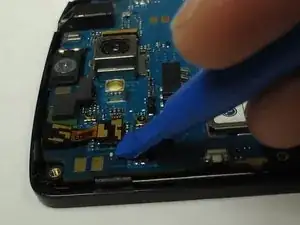

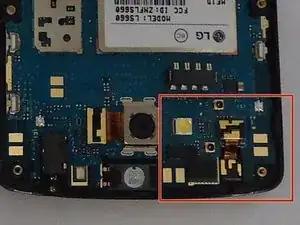

    • Use the plastic opening tool to carefully pry the front-facing camera from the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
