Lenovo G50-70 Optrical Drive Replacement

Автор: Caleb DesJardins
  • Комментарии: 1
Lenovo G50-70 Optrical Drive Replacement

Сложность

Easy

Шаги

4

Необходимое время

3 минут

Введение

This guide can be used if the optical drive is malfunctioning. Removing the optical drive is also required before the main cover can be opened up.

Инструменты

  1. 2waLCQL1UlYLTTOV
    2waLCQL1UlYLTTOV
    NspVmAmqI1UjJDKG

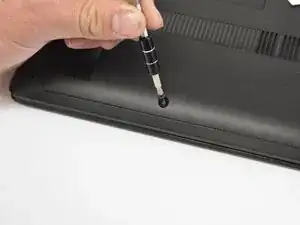

    • Remove the three 6mm Phillips #0 screws holding the back access panel on.

  2. ACdrWayPUNdU3tad
    ACdrWayPUNdU3tad
    YxQXl4EOy1dM6xV1

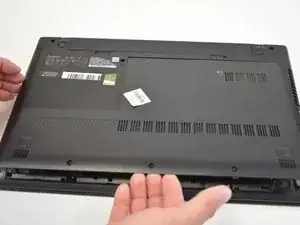

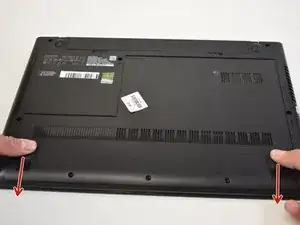

    • Slide the cover toward you to unlatch it.

    • The edge of the panel will slide away from the laptop so it can be lifted.

  3. yARqV433oGBjhNhR
    yARqV433oGBjhNhR
    ElWgmTBYCOyvlatS

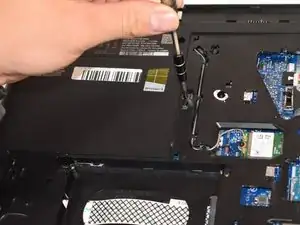

    • Remove one 6mm Phillips #0 screw holding in the optical drive.

  4. V5VYGSNLGAKJnbat
    V5VYGSNLGAKJnbat
    R4KiMuvPZVNErq6E

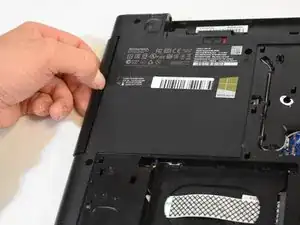

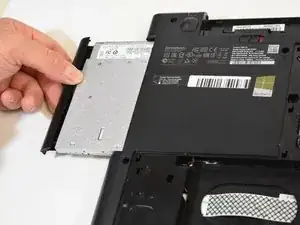

    • Grab the optical drive by the edge and pull it out.

Заключение

To reassemble your device, follow these instructions in reverse order.
