Lenovo IdeaPad U450 Keyboard Replacement

Автор: Rachel L Rodrigues
  • Комментарии: 0
Lenovo IdeaPad U450 Keyboard Replacement

Сложность

Moderate

Шаги

10

Необходимое время

5 минут

Введение

The keyboard is an essential part of your computer and this guide will take you through the steps to replace your damaged one.

  1. cRcLwQDCbaSU6jVO

    • Turn off and unplug your laptop to prevent the risk of electrocution.

    • Turn your laptop over so that the bottom is face up.

  2. GMVIWjVZMVEsDAyA

    • On the top left of the laptop there is a switch. Make sure it's pushed in the unlocked position.

  3. 2MrJIuWNfKqkAxlc

    • Locate the switch collinear with the last one and move the switch to an unlocked position.

  4. EuhxpdxXemRJtRGr

    • Remove the unlocked battery.

  5. 43DtuxaDdPfC2oEM

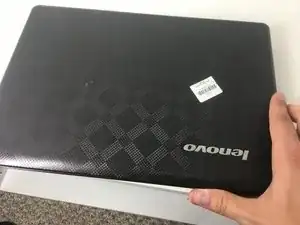

    • Flip the laptop so it's facing upwards.

  6. fWYxbimiE1OKlvmb

    • Open the laptop.

  7. hk4MXGANH2qENPUf

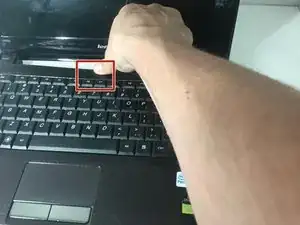

    • Press the most northern region above F6 and F7 until a bit of your keyboard pops out.

  8. SUeskf52DUT3lLij

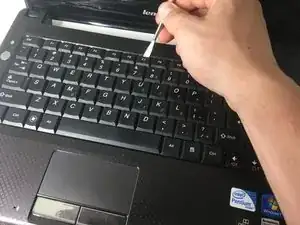

    • Use the spudger to pry the top of the keyboard out.

  9. TkjycH5GcHSBJDqV

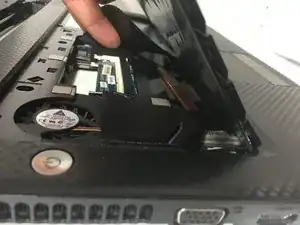

    • Disconnect the wire connecting to keyboard to the laptop.

  10. VdaBVAtt2HvSXXvA

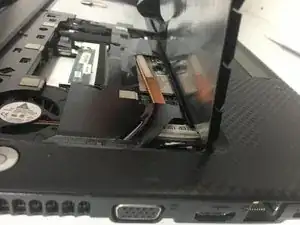

    • Remove the keyboard

Заключение

To reassemble your device, follow these instructions in reverse order.
