Logitech Extreme 3D Pro Main Joystick Spring Replacement

Автор: Emanuel Canela
  • Комментарии: 7
Logitech Extreme 3D Pro Main Joystick Spring Replacement

Сложность

Easy

Шаги

11

Необходимое время

5 - 20 минут

Введение

When moving the joystick, the main spring bends. The spring also keeps the joystick upright. After time, the spring can cause the joystick to sag when not in use. In this situation, replacing the spring will be necessary.

Инструменты

  1. ifhZCZwXn2SySdkS

    • Remove these three Phillips #1 screws:

    • Two 10mm screws.

    • One 7mm screw.

  2. 66wFFnSOg3jfoFnD

    • Using your fingers, lower the rubber boot to reveal two screws underneath the joystick.

    • Remove the two 10mm Phillips #1 screws.

  3. Lqxji5uwBiv2KAyJ
    Lqxji5uwBiv2KAyJ
    HRc6nwCxcxt1XuFb

    • Pull apart the joystick chassis by hand.

    • Release this clip located underneath the hand rest

    • The circuit board will be loose and may fall down.

  4. 3TX5NMxtv1mXtc1a

    • Remove the eight 10mm Phillips #1 screws from the bottom.

    There is a 9th screw that you need to remove near the cable

    gigakoulis -

    I need a wiring diagram for the Logitech 3D Pro, I'm changing the Pots.

    Melvin L. Willms -

  5. IuYBpuAJkpaRhtrT
    IuYBpuAJkpaRhtrT
    6ueJblDYFbyUAEfQ
    UpvWZhpoN2N552Qh

    • Flip the joystick upright.

    • Lift up the sliver base cover and feed the loose circuit board through.

    • Careful with the wires still attached to the silver base cover from the bottom of the joystick.

  6. IFNH1AmlG2SAutaS
    IFNH1AmlG2SAutaS
    ujNWVls4rgXMt4SM

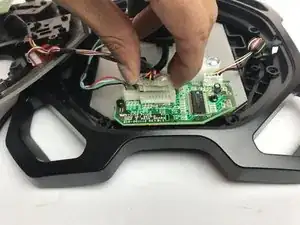

    • Disconnect the wire from the motherboard.

  7. kHxYXkUG1ZryhrMD
    kHxYXkUG1ZryhrMD
    HivfioqfqBYqakly

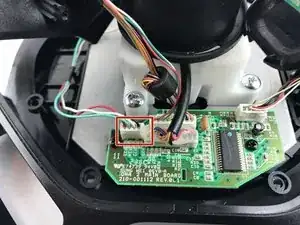

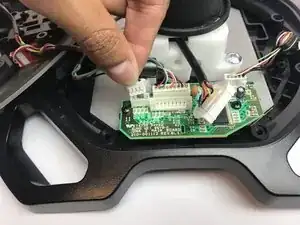

    • Remove this plug from the motherboard.

  8. OjpLtMbaYMJcW4Gk
    OjpLtMbaYMJcW4Gk
    BpGX1EV1EIy5t3wQ

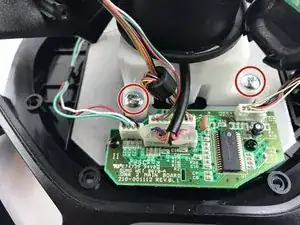

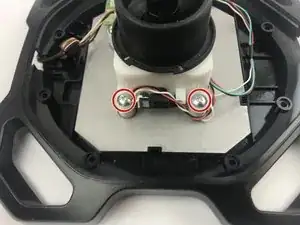

    • Remove the four 10mm Phillips #1 screws from the joystick base.

  9. aBxP2YSVNKcrx24q

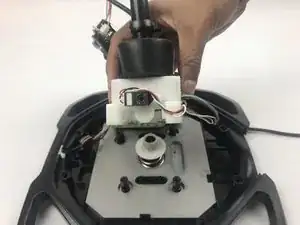

    • Remove the joystick assembly.

  10. vLIEVEPZA1amDFCV

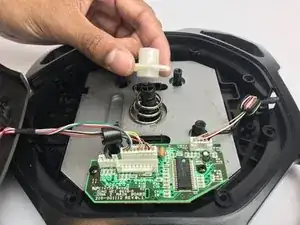

    • Remove the white plastic piece on top of the spring.

    • The white plastic will be covered in a lubricant.

  11. MoQwLpJib1svHCMm

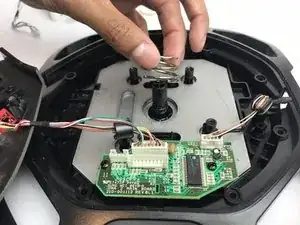

    • Remove the Spring

    • The spring will be covered in lubricant.

Заключение

To reassemble your device, follow these instructions in reverse order.
