MSI GS70 Battery Replacement

Автор: Billy Faulconer
  • Комментарии: 6
MSI GS70 Battery Replacement

Сложность

Easy

Шаги

8

Необходимое время

30 - 35 минут

Введение

Use this guide when you want to replace and/or recycle your battery.

  1. SeOkxDnPi4QfViTt

    • Make sure that the laptop is turned off before starting.

    • Place laptop with the bottom plate facing up.

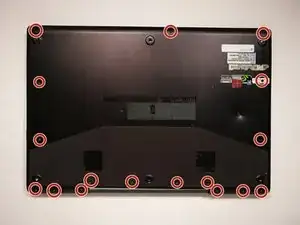

  2. NPa5hbnwXLEIPZvB

    • Remove all screws using the JIS #1 screwdriver.

    2 more screws right in the middle not marked in the pic. remember to get the one under the warranty sticker

    Dave D -

  3. jTNCULaxXHGNVSBb

    • Remove the back plate.

    • Locate the battery.

  4. gPwIfZDACrRf4iup

    • Locate the foil connector above the battery.

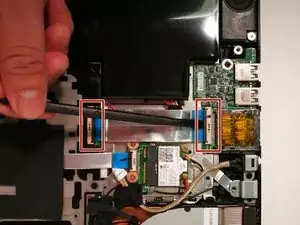

  5. bI5BuNwNNkJXPpC4

    • Flip up both black clips with your spudger.

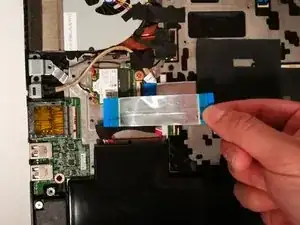

  6. mIWe1IRJISaBPkyE

    • Remove the foil connector by pulling on the blue tabs.

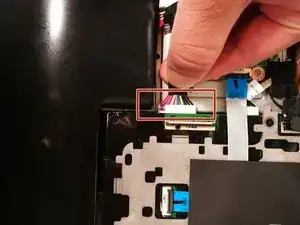

  7. rBA1HVJb2AaJqUVR

    • After the foil connector is removed you will see an 8 pin connector.

    • Disconnect the 8 Pin connector.

  8. gR1fuJGGi1jAGJAf

    • Lift the battery and remove.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Billy Faulconer

Участник c: 21/03/18

429 Репутация

5 комментариев

Perfect guide

storolle -

Anyone know what the foil connector is? Mine is broken, and needs to be replaced.

Jonathan Hawkes -

Which battery model should I buy?

slackware2007 -

BTY-L76 seems like a good fit

uchadhana (다나) -

I want to replace the battery and lcd cover of the msi gs72 6qe stealth pro. Are the msi gs70 parts compatible with the msi gs72? because I have difficulty finding msi gs72 parts in my country (indonesia)

uchadhana (다나) -
