Motorola V60c Antenna Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 - 10 минут

Введение

How to replace a faulty antenna.

  1. SCGYqgMxGYZ6wQbJ
    SCGYqgMxGYZ6wQbJ
    imPKO2NDYNFJRWLw

    • Depress the silver button.

    • Pull from top of phone to lift the cover.

    A spudger may be helpful

    Nick -

  2. TRwtCDgwjFUyjIFe
    TRwtCDgwjFUyjIFe
    2UDeDfDlA1yFqbsE

    • Hold battery from both sides at the bottom.

    • Push upwards and gently lift to remove.

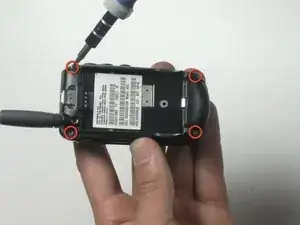

  3. wuAEsrxNmlqgOYK5

    • Remove the four screws from the corners using a T-6 screwdriver.

    • NOTE: Bottom two screws are gold.

    • NOTE: Make sure screws return to correct place when reassembling.

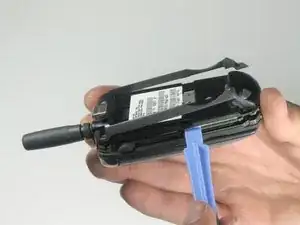

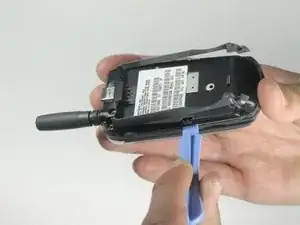

  4. GfaHSJaAWVThj4R5
    GfaHSJaAWVThj4R5
    qWVKZ4wM3FAGBODe

    • Use spudger to pry up back cover from the two side clips.

    • NOTE: sticker might be attached to rest of phone.

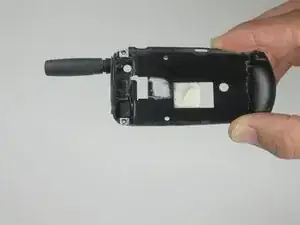

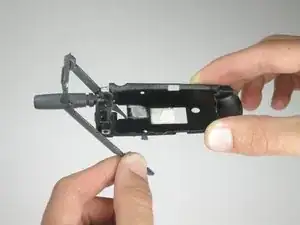

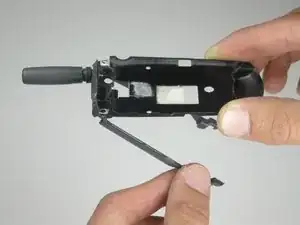

  5. DTPlwVKYMLLJm1Ub
    DTPlwVKYMLLJm1Ub
    YQTEqVEFu1YpVNh2
    HXWumnFfLPEFKaZk

    • Flip over the back cover.

    • Remove the plastic frame.

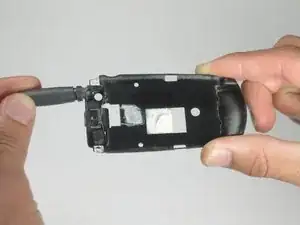

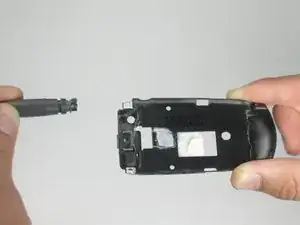

  6. fMEKXyRvoEsfq5pW
    fMEKXyRvoEsfq5pW
    BcelC3PCrVPEh35S

    • Lift up antenna.

Заключение

To reassemble your device, follow these instructions in reverse order.
