Motorola V60s Front Chassis Disassembly

Автор: Eric Freeman
  • Комментарии: 0
Motorola V60s Front Chassis Disassembly

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

This guide shows how to take apart the front casing. This allows access to the front LCD screen.

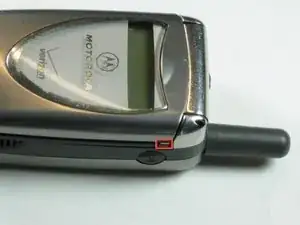

  1. Y22fQdueHDe3IGcj

    • Push in and hold small release latch.

    • Hold the latch through step 2.

  2. NuKXqcO2BPCFtDR4
    NuKXqcO2BPCFtDR4

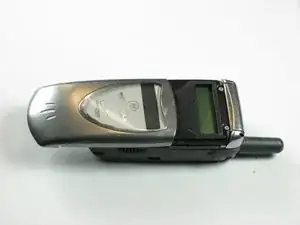

    WGnwMStxtwojLYkH

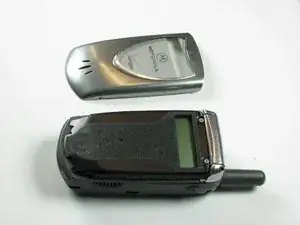

    g3kWZBPMalbmLI6M

    • While holding the release latch, use a opening tool to help you slide off the front cover.

  3. jFLVi5SHcNTS5sBe
    jFLVi5SHcNTS5sBe

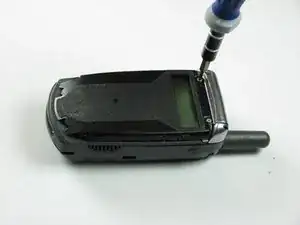

    iXHAtjXXVsbJB3Ns

    • Remove the two Philips screws at top of phone with a #1 Philips screwdriver.

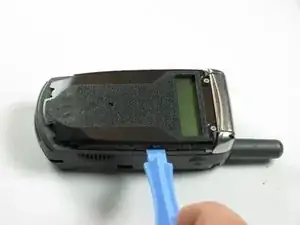

  4. 6nHgTXVpA1KZYsDY
    6nHgTXVpA1KZYsDY

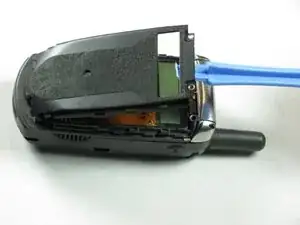

    JNehIk2ZAVARMSmd

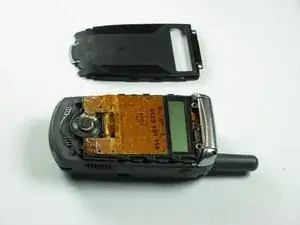

    Ll6WPTGCZceVWHJw

    • Use a opening tool to gently pry off black cover, revealing the internal LCD display.

Заключение

To reassemble your device, follow these instructions in reverse order.
