PCIe Fan Replacement guide

Автор: Andrew Damiani
  • Комментарии: 0
PCIe Fan Replacement guide

Сложность

Moderate

Шаги

4

Необходимое время

5 минут

Введение

Replace a Faulty PCIe Fan

Инструменты

  1. ln1rGELHaf2HbP1R

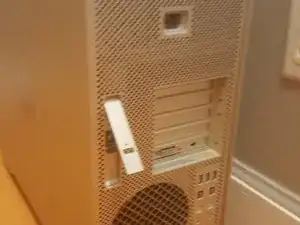

    • Begin by pulling up on the lever located at the back of the computer to remove the side panel.

  2. mIxaiUpHf1GhAbHZ

    • Gently pull outward on each of the four hard drive trays to remove them.

  3. Wdf66u4IMNeESTqX

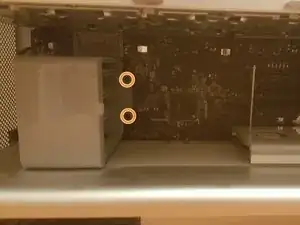

    • Remove the two 10mm PH #1 screws holding in the PCIe fan.

    • They are very tightened, if you do it wrong the screw might get stripped.

  4. RBVFVJpLXdXfdLD3

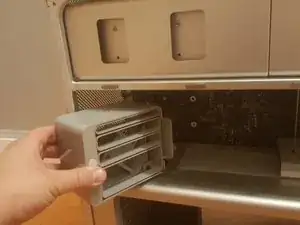

    • Gently pull the fan straight outward to remove it.

Заключение

To reassemble your device, follow these instructions in reverse order.
