S7 MaxV Ultra Dock: Motherboard replacement

Автор: DegenFixer
  • Комментарии: 0
S7 MaxV Ultra Dock: Motherboard replacement

Сложность

Easy

Шаги

5

Необходимое время

15 - 30 минут

Введение

This guide will show you how to replace the motherboard of the dock unit of Roborock's robotic vacuum S7 MaxV Ultra.

I recommend reading the entire guide before starting the disassembly, then following steps as needed during.

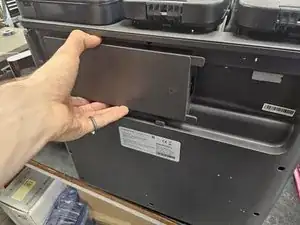

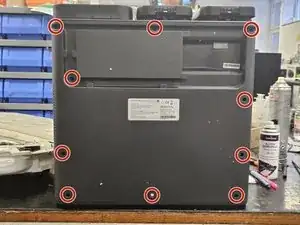

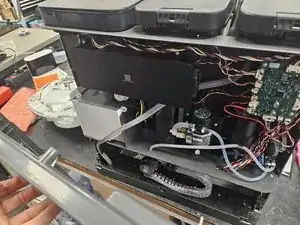

  1. EiRgIYjJ6nNgAJeC
    EiRgIYjJ6nNgAJeC
    QQgiHdGRWMpZeDZr
    amDwMiEImBVfn43W

    • Remove the marked screws.

    • Pull the back cover off.

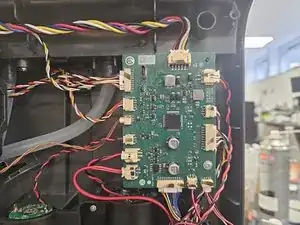

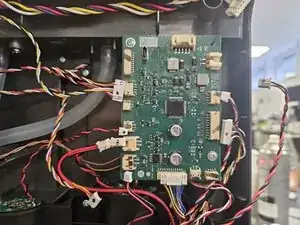

  2. KjZHiBAS2pWMdhle
    KjZHiBAS2pWMdhle
    xoOJlJ2bLfSRsX4N

    • Disconnect the cables from the motherboard.

    • The motherboard is in the top right of the dock itself.

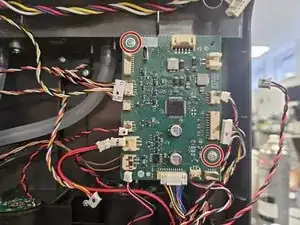

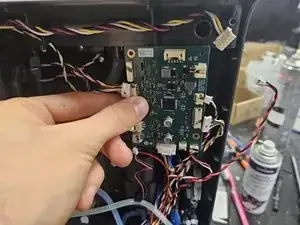

  3. C6loAuaJQweVBWdK
    C6loAuaJQweVBWdK
    YSJetfldUMZ2Mt24
    JNKlaWR2xLVFfR3g

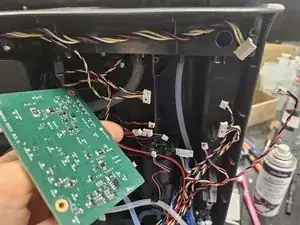

    • Remove the screws.

    • Once those are removed, take the motherboard out.

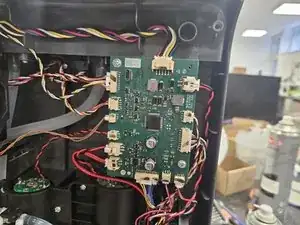

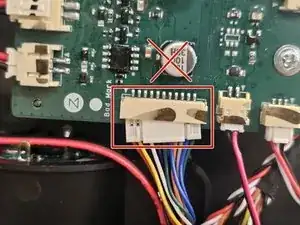

  4. NgEmlBejBhxxyWot
    NgEmlBejBhxxyWot
    2kiqriAaW4LUFPqc
    lpSOZQnsNoRB4sQS

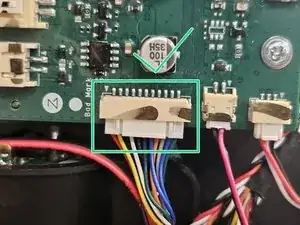

    • When connecting the cables to a new motherboard, ensure all connectors are fully connected.

  5. 2jiSZBEDMBIOlxBV

    • Here are the screws organised by steps and size.

    • Use this if needed as a reference during reassembly.

Заключение

To finish the reassembly, simply add the back cover and screw it back on.
