Samsung Eternity Input Jack Replacement

Автор: Sven
  • Комментарии: 0
Samsung Eternity Input Jack Replacement

Сложность

Moderate

Шаги

9

Необходимое время

15 - 30 минут

Введение

You will need to find a clean area to work in and have the necessary tools. Follow this guide to gain access to your cellphone's input jack module.

    • Remove the back battery cover.

  2. DFVssrCsaalAmneL

    • Using a nylon spudger, remove the phone's battery.

  3. TwnBImxVHmGkTgel

    • Remove six (4.28 x 1.25)mm screws using the Phillips #00 screwdriver.

  4. RRsRo2iNI43NWHNY
    RRsRo2iNI43NWHNY
    p3CxvlR2V3bsgrqG

    • Use a nylon spudger to gently pry the silver plastic back plate from the body of the phone.

  5. A11CWLPYKhEEIxr6

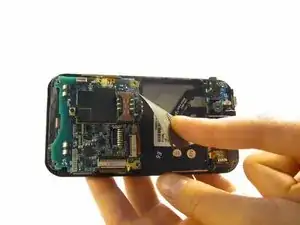

    • Peel off the Identification sticker

  6. omet1wSvWs2vDFnj

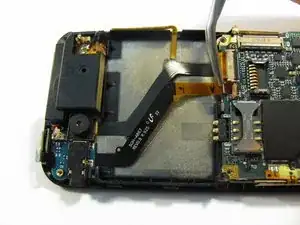

    • Pop the red hinged-release lever away from its ribbon, then slide the ribbon out.

  7. KT1hUnq6BTlZWgII

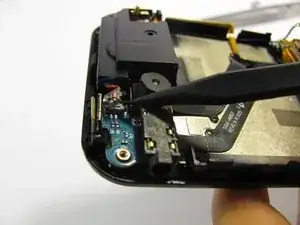

    • Pop the speaker plug out of its socket.

  8. lgVBIJTw3w1WL5c1

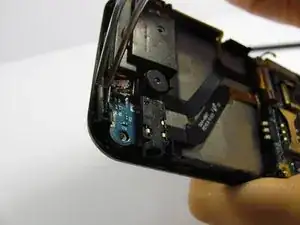

    • Peel the button sensor off the top of the case.

  9. KYlu3cjUSI1KhJZo

    • Peel the Input jack assembly out of the case.

Заключение

To reassemble your device, follow these instructions in reverse order.
