Samsung Galaxy Note Pro 12.2 Audio Jack Replacement

Автор: Tina Kong
  • Комментарии: 0
Samsung Galaxy Note Pro 12.2 Audio Jack Replacement

Сложность

Moderate

Шаги

7

Необходимое время

15 минут

Введение

If you are having trouble with using your headphones, you may need to replace your audio jack. This guide will show you how to safely replace the audio jack in your device.

  1. EtNMTbZ6ctDgDrpu

    • Make sure that your device is powered off before starting your repair.

    • Carefully remove the back cover with the blue opening tool.

    • It is best to start with one corner and work your way around the device slowly.

  2. cMS1xKYShsSthRbD
    cMS1xKYShsSthRbD
    aJIMvFXFaDToT15g

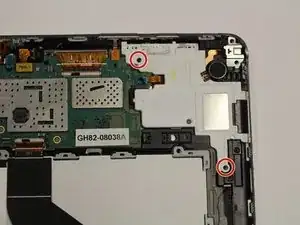

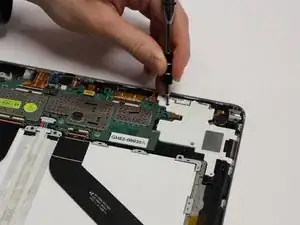

    • Remove the two 3mm Phillips #00 screws securing in the white cover over the audio jack.

  3. PlrrQCubhbg2nAnl

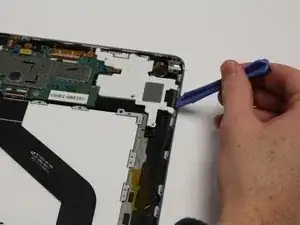

    • Remove the white cover over the audio jack with the plastic opening tool by pushing up on the black connecter.

  4. qSU4QATjZ3MwmYYX
    qSU4QATjZ3MwmYYX
    UUrObWuTwCPbvRxQ

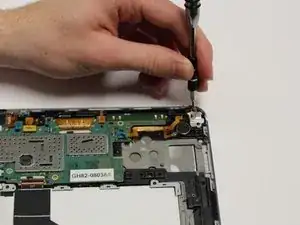

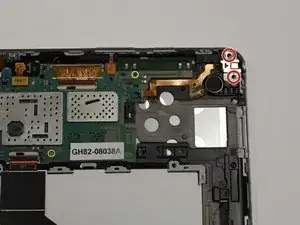

    • Remove the two 3mm Phillips #00 screws over the silver cover.

    • The silver cover is attached to the whole audio jack; do not try to pull this away by itself.

  5. A4Tf5pEADsWKDQpB
    A4Tf5pEADsWKDQpB
    MPmxBeMrYhI3tYkm

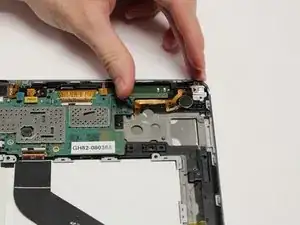

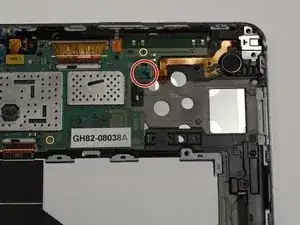

    • Pop up the green connecter by gently pulling up.

  6. dWuNjbMZ4IIpPobM
    dWuNjbMZ4IIpPobM
    nvAmFce145QfWYlo

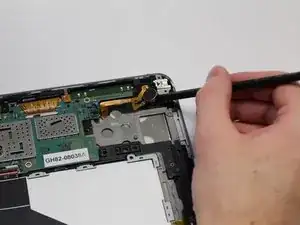

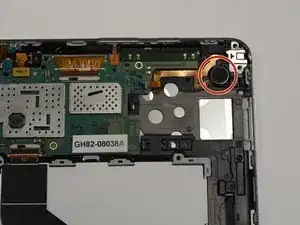

    • Pull up on the circular amp with the spudger tool to release it from the device.

  7. 1FUKCthopvgRviQ1

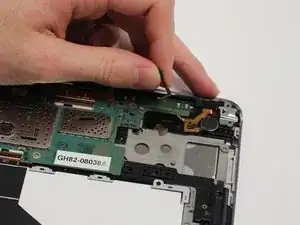

    • Remove the whole audio jack by pulling gently up on the copper piece.

    • This component is extremely fragile.

Заключение

To reassemble your device, follow these instructions in reverse order.
