Shop-Vac MC150A Power Cable Replacement

Автор: Ngunlian
  • Комментарии: 2
Shop-Vac MC150A Power Cable Replacement

Сложность

Moderate

Шаги

8

Необходимое время

20 минут

Введение

If you have a short or cut power cable you should replace it with a new one. This guide will help you through replacing the power cable attached to the vacuum.

  1. OPBma6yWlSNVw4dn

    • Before you begin, make sure to switch off the device and unplug it from the outlet.

    • Unlatch the two side clips securing the power unit assembly to the tank.

    • Remove the power unit assembly from the tank assembly.

  2. WGqBV1MxvMyjvNDF
    WGqBV1MxvMyjvNDF
    ESj3QThAQDhayrYp

    • Use a 3.5 mm hex key to remove the three screws securing the top cover.

    • Remove the top cover.

  3. 5U1tBNWKVhAnlsHk

    • Use a 3.5 mm hex key to remove the four screws securing the power unit assembly.

  4. GRMRYicVp5Te3pJF

    • Separate the power unit assembly from the cover.

    Whereabout did you buy the replacement motor?

    HughP -

  5. wltAxv2YfYwaSvxP
    wltAxv2YfYwaSvxP
    UHSItCGIRoaR5Jx1
    sUFcZPuGb2nVmw3o

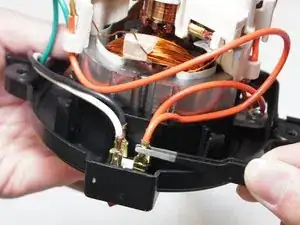

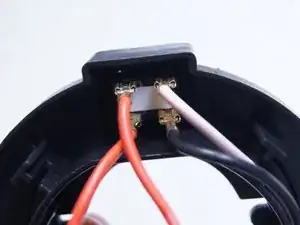

    • Pull out and disconnect the four spade connectors from the switch module.

    • During reassembly, use the last image as a reference for how to connect the wires.

  6. olnKolJCR1QCysq2
    olnKolJCR1QCysq2
    prBZheNrkMEqn3SN

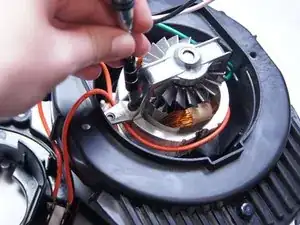

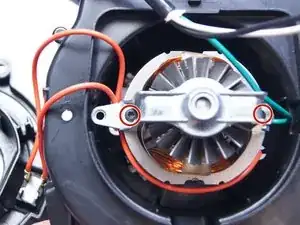

    • Use a Torx T15 driver to unscrew the two screws securing the metal motor bracket.

  7. wuvmYnZ6QVHQ3HUf
    wuvmYnZ6QVHQ3HUf
    jE2LiiwjjCtFTD5G

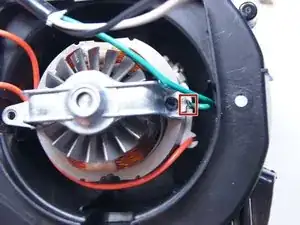

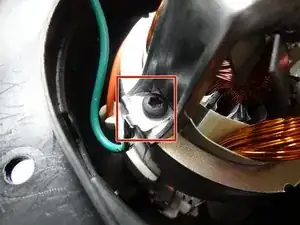

    • During reassembly, be sure to reattach the green ground wire clip to the bracket.

  8. j6BASfXJ4UaINDGA

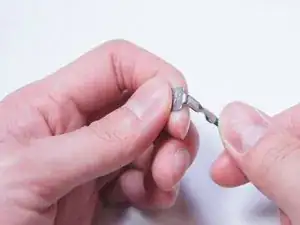

    • Separate the clip from the green wire and transfer it to the replacement motor.

Заключение

To reassemble your device, follow these instructions in reverse order.
