Sony BDP-S3700 Port Board Replacement

Автор: Luiz Barreto
  • Комментарии: 1
Sony BDP-S3700 Port Board Replacement

Сложность

Easy

Шаги

7

Необходимое время

6 минут

Введение

The port board is where the power and eject buttons, the IR sensor and the USB port are located. This guide shows how to replace it.

Инструменты

  1. xubC3hJVGmUPI6ui
    xubC3hJVGmUPI6ui
    WbVMEXFYPCQgYgHo

    • Use the PH1 screwdriver to remove the two 9mm screws on the back of the Blu-ray player.

  2. KmD2OWpCqTYGhvcA
    KmD2OWpCqTYGhvcA
    WHdRFrJdPZa6kvRZ

    • Remove the back of the device by slowly sliding the rear outer housing backwards.

  3. lvXgcZoD3B3QQQyZ
    lvXgcZoD3B3QQQyZ
    6ie6skbJhY5Rq4QV

    • Turn the Blu-ray over

    • Pry open the clips under and on the sides

  4. RqdjTbaD52TCfLHJ

    • Once all the clips are open, slide the front outer housing out.

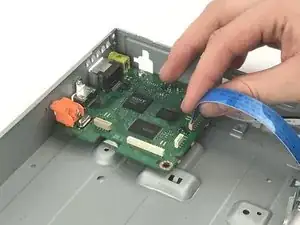

  5. mebawjst4NdBEoVQ

    • Flip the Blu-ray back up

    • Remove the ribbon connecting the port board to the motherboard.

    • Handle the circuits only on its side.

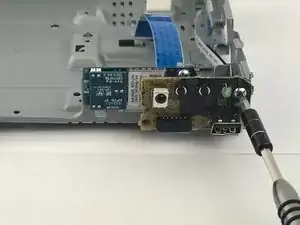

  6. O5ZLGHnCdVWRO5sv

    • Use the PH1 to remove the 7mm screw on the port board.

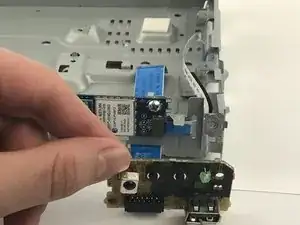

  7. ONexBqPEKMZuT2j5

    • Remove the port board.

    Do you know how I can get a port board replacement part?

    Jessica Crater -

Заключение

To reassemble your device, follow these instructions in reverse order.
