Sony VAIO PCG-3E2L Hard Drive Replacement

Автор: Chengyang Chen
  • Комментарии: 0
Sony VAIO PCG-3E2L Hard Drive Replacement

Сложность

Moderate

Шаги

5

Необходимое время

5 - 10 минут

Введение

This guide will aid readers to replace or upgrade Hard Drive of the device when the Hard Drive is not functioning properly.

Инструменты

Запчасти

  1. 6Cpul1UiVFMbDThS

    • Using a #00 Phillips screwdriver, remove the screw

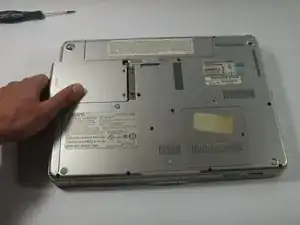

  2. kaVPPEALPnZorifD

    • Remove the cover

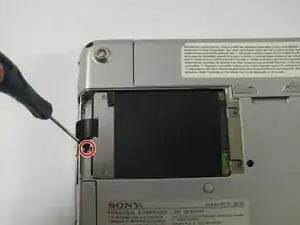

  3. hZFNF5bLNVAG2ioT

    • Using a #00 Phillips screwdriver, remove the screw

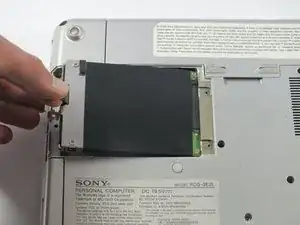

  4. aH2A2aglHuUkZBI6
    aH2A2aglHuUkZBI6
    Ji5lf4IZQJnTVb4C

    • Grab the black plastic handle and pull the hard drive out slowly.

    • Only pull the hard drive horizontally. Do not lift the hard drive vertically

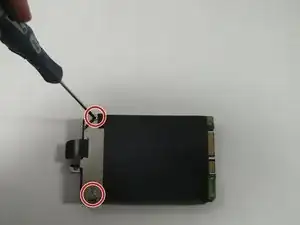

  5. EPLta4OWOpWBTixJ
    EPLta4OWOpWBTixJ

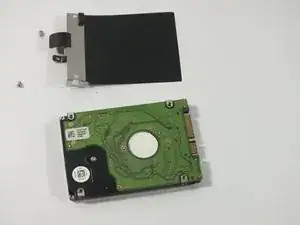

    TGUbOWEUXCDtMest

    • Using a #00 Phillips screwdriver, remove the screw

Заключение

To reassemble your device, follow these instructions in reverse order.
