Suzuki Boulevard S40 Seat Replacement

Автор: Luke Soules
  • Комментарии: 1
Suzuki Boulevard S40 Seat Replacement

Сложность

Easy

Шаги

3

Необходимое время

Нет оценки

Введение

  1. jRVh5egB41nlAcZ4

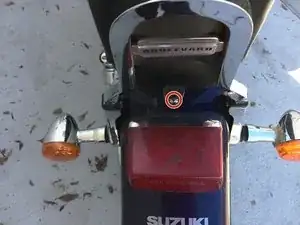

    • Remove the 4 mm Hex screw securing the back of the seat.

  2. DIKLAWjmKAmyGIAd
    DIKLAWjmKAmyGIAd
    hSY4SqYtpTraHec4

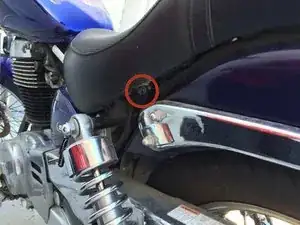

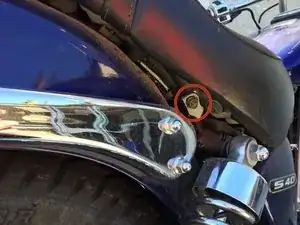

    • Remove the two 10 mm hex head bolts, one on either side of the seat.

  3. SdRCvDEEXuEUZ62Z

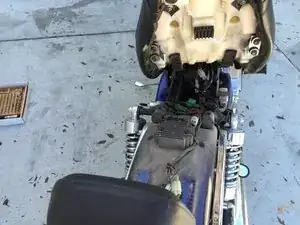

    • Push the seat towards the front of the bike and lift it up.

Заключение

To reassemble your device, follow these instructions in reverse order.
