TiVo Premiere XL4 Cover Replacement

Автор: Frances Prewitt

Сложность

Very easy

Шаги

Необходимое время

5 минут

Введение

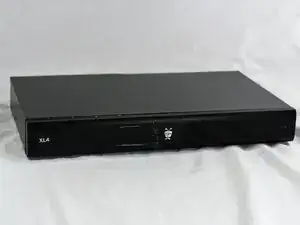

Power down the TiVo Premiere XL4 by detaching the power cable from the unit and power source.
Allow the box to cool for at least 5 minutes before proceeding to the next step.

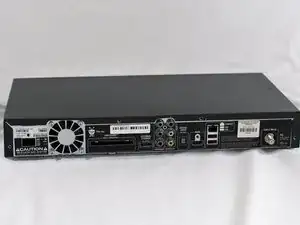

Remove the four 80 mm T10 screws from the back of the TiVo box using theTorx screwdriver.

After removing these 4 screws, the cover still does not come off easily. It appears to be bound on the sides by some other means.

There are metal latches on the sides that have to be carefully released by a spudser or a flathead screwdriver to enable the top to be removed.

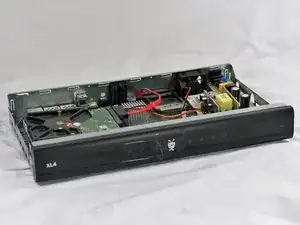

Take the outer casing by sliding the top of the box off of the component carefully, making sure not to damage the surrounding components inside.

Заключение

To reassemble your device, follow these instructions in reverse order.
