Toshiba Satellite E45-B4100 RAM Replacement

Автор: Brendan Sweeney
  • Комментарии: 0
Toshiba Satellite E45-B4100 RAM Replacement

Сложность

Moderate

Шаги

5

Необходимое время

Нет оценки

Введение

  1. 5okpVOTswOjFASB1

    • Remove the fourteen 3.75mm screws with a Phillips #0 Screwdriver as shown.

  2. PmqVxUhNv2xScNvy

    • Gently pull out the battery.

  3. kXSrZyMFqvu6pQ63

    • Using a spudger, poke the white tabs in by the battery until you hear a click.

  4. MmSTMX4PbFD2obfB
    MmSTMX4PbFD2obfB
    ZCX3vnhckNUMBYBx

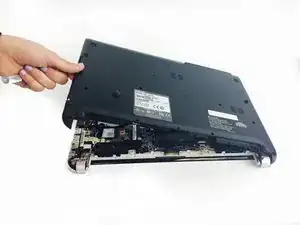

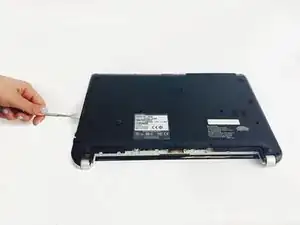

    • Separate the laptop by sliding a spudger in between the black and silver covers.

    • Be sure to use ESD-safe tools, we recommend iFixit Toolkit.

  5. mcwWFelQobSijxcN
    mcwWFelQobSijxcN
    LAfXswCF11OrXgwk

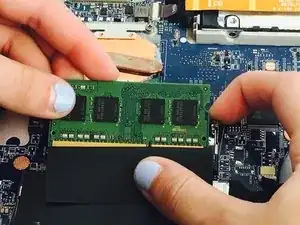

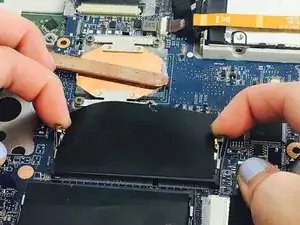

    • Pull the two metal brackets out away from RAM unit while simultaneously sliding the RAM unit out.

Заключение

To reassemble your device, follow these instructions in reverse order.
