Vornado 133 Compact Air Circulator Fan Blade Replacement

Автор: Erin Klein
  • Комментарии: 1
Vornado 133 Compact Air Circulator Fan Blade Replacement

Сложность

Easy

Шаги

3

Необходимое время

Нет оценки

Введение

If the fan blades of the Vornado 133 are dirty or become damaged, it may be necessary to remove them for cleaning or replacement. This guide will detail how to remove the front grill in order to access the blades, as well as how to remove and replace the blades themselves.

Инструменты

  1. lCOH64SJjdVrcSfb
    lCOH64SJjdVrcSfb
    EIZIiNg32MJFrEAe
    IlEdcaSgUaJN15vF

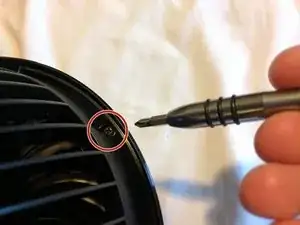

    • Use a #1 Phillips screwdriver to remove the four 3mm screws.

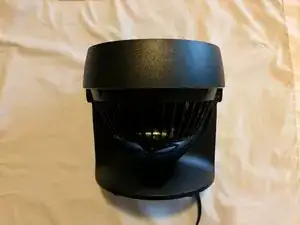

    • It may be difficult to reach the bottom two screws; tilt the fan housing straight upwards for easier access.

  2. DbQDpZRValYfU2To
    DbQDpZRValYfU2To
    xy2YrOWMGFYQeHYq

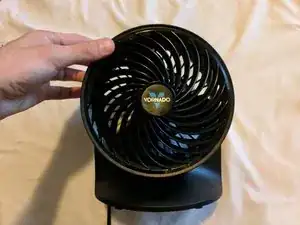

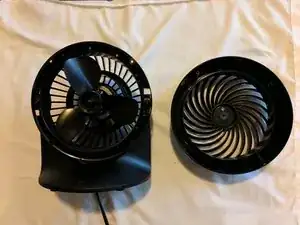

    • Once the screws are removed, turn the fan back over. Use your hands to pull the front grill cover off.

  3. XQbx5vKBm1OG4NFB
    XQbx5vKBm1OG4NFB
    HyxggUJ6a2qSAynq
    PDDJHpbUWhgeGCdV

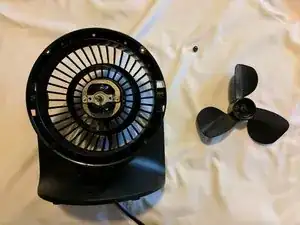

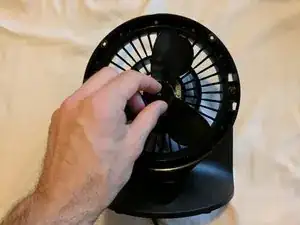

    • Turn the center nut on the blade shaft clockwise to remove the nut, then remove the blades.

    • The nut is removed by turning clockwise, rather than the normal counterclockwise.

Заключение

To reassemble your device, follow these instructions in reverse order.
