Wacker Pump PST2 400 2008 Power Cable Replacement

Автор: Carsten Frauenheim
  • Комментарии: 3
Wacker Pump PST2 400 2008 Power Cable Replacement

Сложность

Moderate

Шаги

11

Необходимое время

5 - 10 минут

Введение

Use this guide to remove or replace the power cable on a Wacker PST2 400 (2008) Submersible Pump.

  1. SCYs3NZTGSLNQnqb
    SCYs3NZTGSLNQnqb
    CbuRB6TKVu1bBPdH
    EwIx3XwBT1gIKdxG

    • Before starting, ensure the device is unplugged from power.

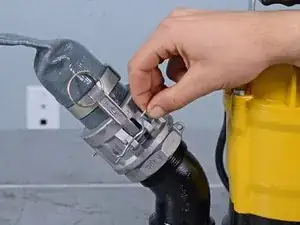

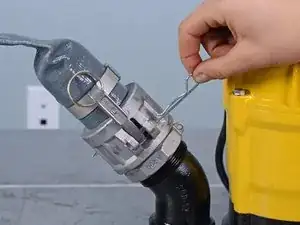

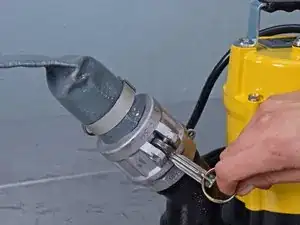

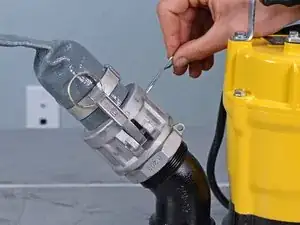

    • Pull to remove the two cotter pins securing the hose's locking arms, one on either side.

  2. WNtKhuOhbdwjJfn6
    WNtKhuOhbdwjJfn6
    sv4Q1YiPDUHQYAVp
    hdYMCsE3jGqscZVY

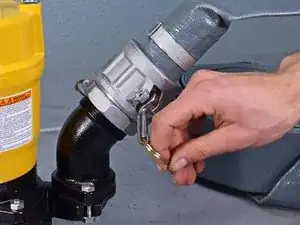

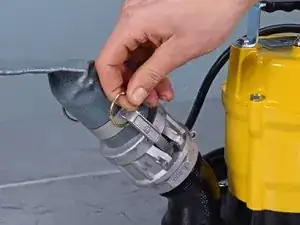

    • Flip the two locking arms down to unlock the hose collar.

  3. tSQVfqrFLjBXrXfM
    tSQVfqrFLjBXrXfM
    fVSN5afYTxWLty1W

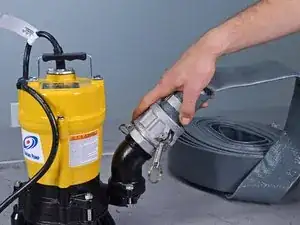

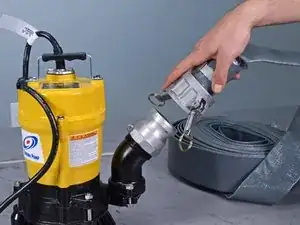

    • Lift the hose away from the collar on the pump body to remove it.

  4. t1VhbtwSU5WMknP5

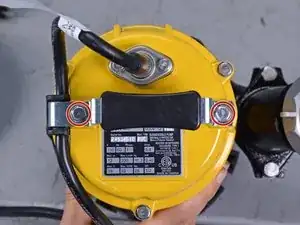

    • Use a 10 mm socket to remove the two bolts securing the handle to the housing cover.

  5. wPGIT1hRVweOhWMP
    wPGIT1hRVweOhWMP
    PX6ri5RPWWqiEUCT

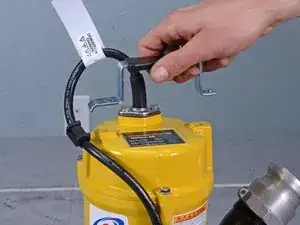

    • Remove the handle.

  6. FMOGXUyXOQlvEB1A
    FMOGXUyXOQlvEB1A
    laLXtZSMo6DDSQGS

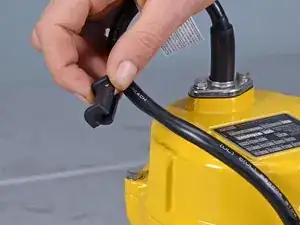

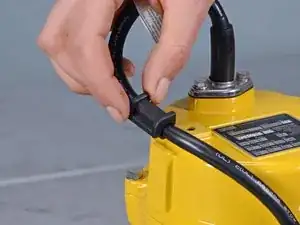

    • Remove the plastic cable guide from the power cord.

    • During reassembly, ensure that the cable has enough slack and is not kinked at its flex joint before securing the cable guide with the handle bolt.

  7. 5tfiJtqNDbGniNNH
    5tfiJtqNDbGniNNH
    3x5AX5idT6tYGvK2

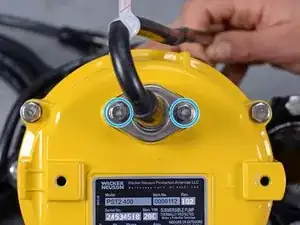

    • Use an 8 mm socket to remove the two bolts securing the power cable to the housing cover.

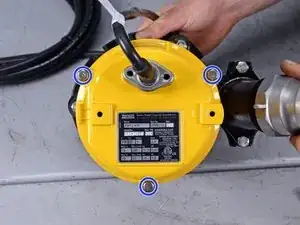

    • Use a 10 mm socket to remove the three bolts securing the housing cover to the main body.

  8. FWfiCi1mDUjOLget
    FWfiCi1mDUjOLget
    By5wBekThJJGOeSa
    eyBoksMjKS1qCAqs

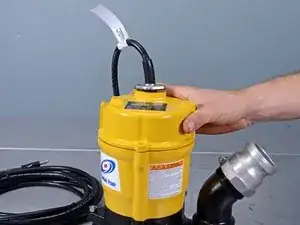

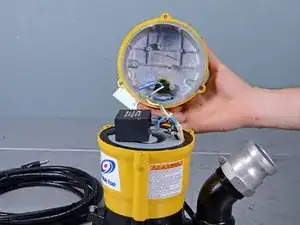

    • Lift the housing cover up and off of the main body.

    • The housing cover is still attached at the power cord, so don't attempt to completely remove it just yet.

  9. YgIvHZsFcEfZaIIH
    YgIvHZsFcEfZaIIH
    hL3nJIvqGkCKuZeS

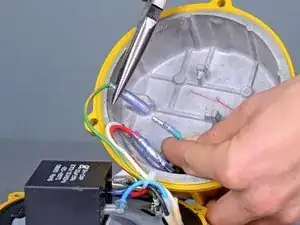

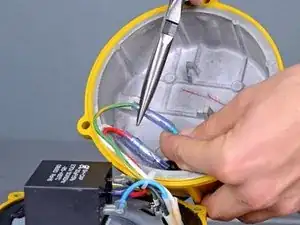

    • Use a pair of needle nose pliers to disconnect the ground wire's bullet connector.

  10. Oa4UAJhrmsofhcIq
    Oa4UAJhrmsofhcIq
    JIkf4FEAnBRHLYsm
    4KRxrS5nhCFSyAWN

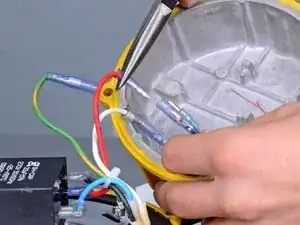

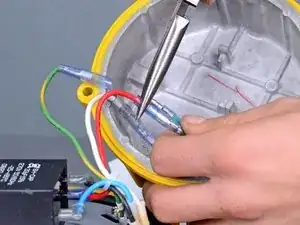

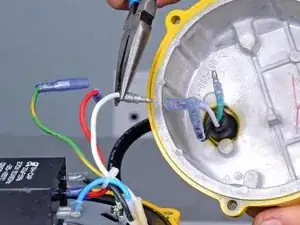

    • Use a pair of needle nose pliers to disconnect the red and white power wires' bullet connectors.

    • During reassembly:

    • Connect the power cord's black wire to the device's red wire

    • Connect the green ground wires together

    • Connect the white wires together

  11. 1JJQRAHB1Xqdt5AR
    1JJQRAHB1Xqdt5AR
    AnUWKMfn6g1l6NAj

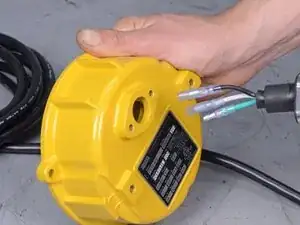

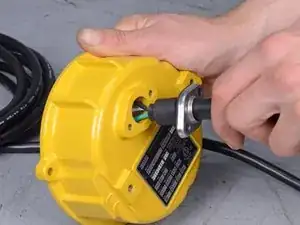

    • Pull the loose power cable out through its hole on the housing cover to remove it.

Заключение

To reassemble your device, follow these instructions in reverse order.
