ZTE Tempo X Charging/Aux Board Replacement

Автор: Conager Robb
  • Комментарии: 0
ZTE Tempo X Charging/Aux Board Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 15 минут

Введение

Use this guide to replace the charging/AUX board in your ZTE Tempo X smartphone.

  1. axAZNuRYBuQQacY3
    axAZNuRYBuQQacY3
    kNft1ICjgIa1sLmv

    • Remove back cover using the divot provided.

  2. jZcNoRLLphN3MTe6
    jZcNoRLLphN3MTe6
    5MODTTo4ejEXAdK5

    • Find the divot near the bottom of the battery and remove the battery from the device.

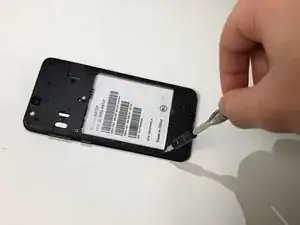

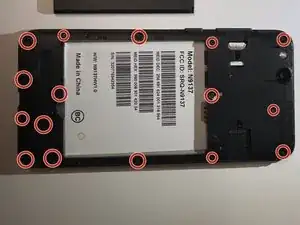

  3. 4pg5To3FW13sHqCk
    4pg5To3FW13sHqCk
    NvDevPZyiH2JJv2P

    • Remove the sixteen 3mm screws using the Phillips #000 screwdriver.

  4. XgXUfx3xJVBMiHJH
    XgXUfx3xJVBMiHJH
    YQjnjO3RJbMHN2rf

    • Take off the second back cover, lifting from the bottom of the device to the top.

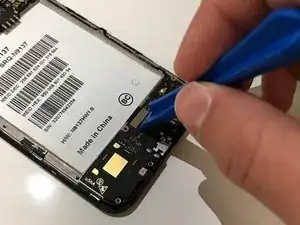

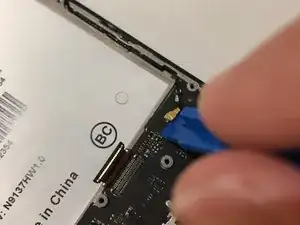

  5. YiagtTTXtOWQb1vJ
    YiagtTTXtOWQb1vJ
    DBEh3VoBIquRXcFi
    uhKMaf3nmAE3KKvy

    • Using a spudger, unclip the board from the phone at the places highlighted.

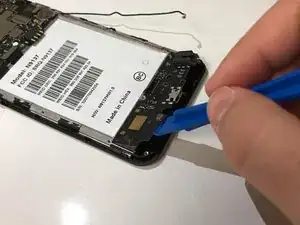

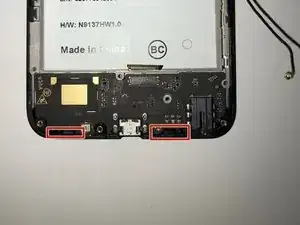

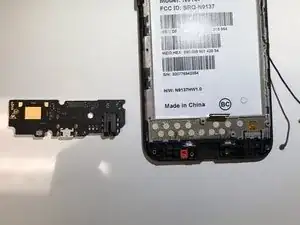

  6. eCelvyTNjZwuVnG6
    eCelvyTNjZwuVnG6
    5apQkUBWKuKMNdWl
    wLT2STbhWUBv4It2

    • Use the spudger to remove the board from the phone.

    • The board is held by glue so there will be resistance when detaching it from the phone.

Заключение

To reassemble your device, follow these instructions in reverse order.
