iRobot Roomba 805 Wheel Replacement

Сложность

Easy

Шаги

2

Необходимое время

4 минут

Введение

This guide will go over how to clean or replace the wheels in your iRobot Roomba 805. If you plan on replacing either wheel you can get a new one from iRobot. A Phillips head screwdriver is needed to follow this guide.

  1. k6HpFylnQ15DIMwI
    k6HpFylnQ15DIMwI
    3fdfA1GAOoVTPicU

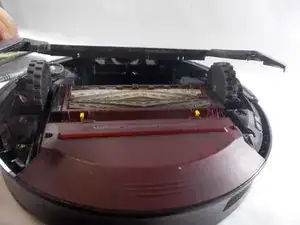

    • Remove the battery panel, then remove the two screws behind the wheels, and lift the bottom panel apart from the rest of the device.

  2. XIYfNWm1jPUkYn2o
    XIYfNWm1jPUkYn2o
    un1sJwyAtXWd2MjW
    KnRIrBbwqNSpgtQG

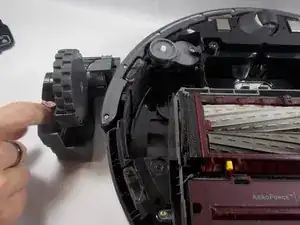

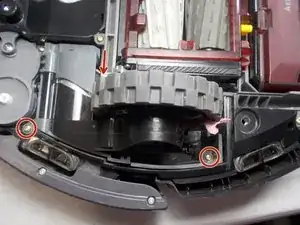

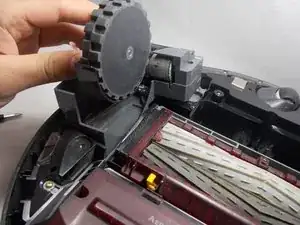

    • Remove the three screws holding the wheel to the chassis and pull it out.

    • Keep in mind the two wheels are symmetrical, so you can follow these steps for either.

Заключение

To reassemble your device, follow these instructions in reverse order.
