iRobot Roomba 880 Cleaning Head Replacement

Автор: Allie Ahern
  • Комментарии: 0
iRobot Roomba 880 Cleaning Head Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 - 10 минут

Введение

This guide will show you how to replace the whole Cleaning Head in the Roomba 880, which houses the Debris Extractors. Let's do it!

  1. APaVaARlTSEYMkTO
    APaVaARlTSEYMkTO
    VGfuVfTTarXdDGLL
    A31Z3XvYhHtkwhyt

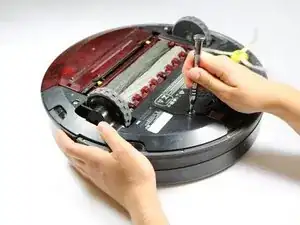

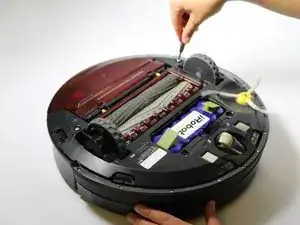

    • Flip the Roomba over, wheel-side up.

    • Using a Phillips #1 screwdriver, loosen the four 15 mm screws illustrated. Two are located on the battery door, while two are on the bottom panel.

    • Remove the battery door, pulling straight up from the two indents above the screws.

  2. yPFSRH1cwvvK5tel
    yPFSRH1cwvvK5tel
    1MUbW2HtAkOhOwKy

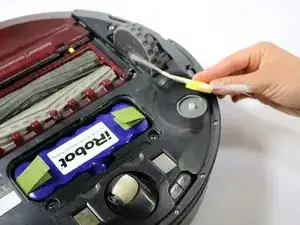

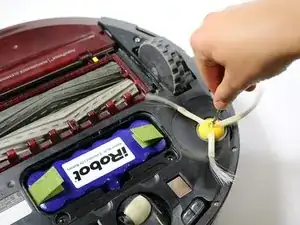

    • Using a flat head screwdriver, loosen the screw on the top of the side brush.

    • Remove side brush.

    • The bottom panel cannot be removed without first removing the side brush, so make sure to do this first.

  3. CDcXbkAfcFSn2Ahb

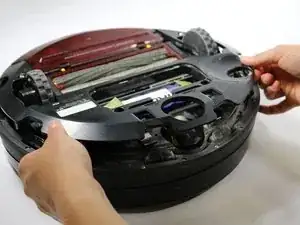

    • Pull up on the bottom panel to remove.

  4. xHOvdLdQdhHcbIXj
    xHOvdLdQdhHcbIXj
    kxGFVuh3yhLhCIBj

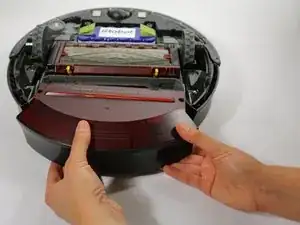

    • Reach underneath the dust bin, press the bin removal button, and pull out.

    • The bin removal button is located on the top edge of the bin.

  5. WIcP31SJPEuoCFb6
    WIcP31SJPEuoCFb6
    Z4dDX6NmgXVKfByx

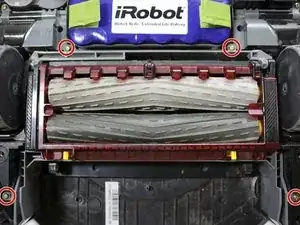

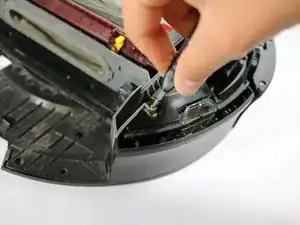

    • Using a Phillips #1 screwdriver, remove the four 10 mm screws shown.

  6. 32XrhLQEQA4fIvCX
    32XrhLQEQA4fIvCX
    VuZNOrwQWgBBCvTT
    qUHWEVLYlOb2imYV

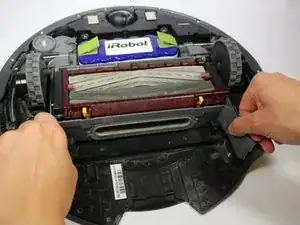

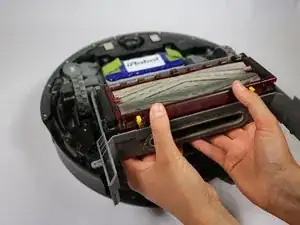

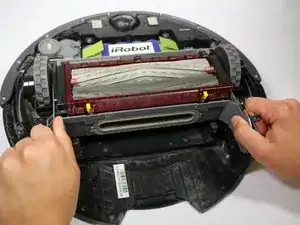

    • Remove the cleaning head by grabbing the two protruding tabs as shown, and pulling straight up.

Заключение

To reassemble your device, follow these instructions in reverse order.
