Use this guide to replace the brushes on you iRobot Roomba S9 Plus. This guide is also helpful for cleaning the brushes to keep them running properly.

  1. 61sE4VtmrRyjTMmk
    • Push the grey tab by the top left corner of the brushes to release the retaining arm.

  2. VpWvDNE4YEZAlVdI

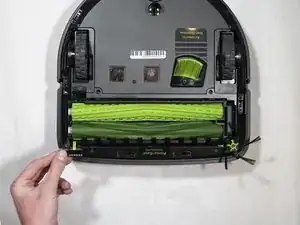

    • Lift the retaining arm away from the brushes.

  3. IIIO4ovMsBi2ASt4
    IIIO4ovMsBi2ASt4
    bQTxleFDyFnjwIah

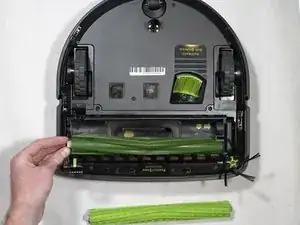

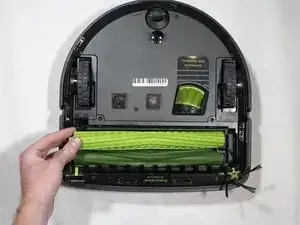

    • Individually lift the brushes from the left side and remove them from the cleaning head module.

Заключение

To reassemble your device, follow these instructions in reverse order.
