iRobot Roomba i3 Plus Battery Replacement

Автор: Hunter Platt
  • Комментарии: 0
iRobot Roomba i3 Plus Battery Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 минут

Введение

This is a step by step guide on how to replace the battery on an iRobot Roomba i3+ or i3

  1. UW6TexLY1OBKmJCI

    • Unscrew the 5 #0 Phillips screws.

    • The screws do not come out all the way, they will stay in the cover.

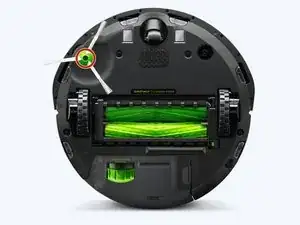

  2. hTusuUV2c1UNEIQE

    • Use a Flathead screwdriver or Philips to unscrew the side brush.

    • Make sure to hold the side brush or it will spin when you try to unscrew it.

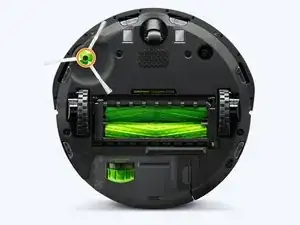

  3. huJwqHRjYfXJ6LiI

    • Gently pull the side brush straight up.

    • Do not pull the side brush too hard or you may break the plastic.

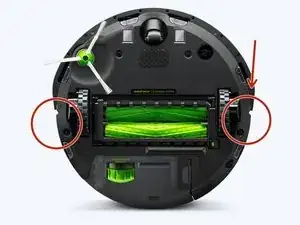

  4. MEBfIWv2wgYltydk

    • Use your fingernails to pull up on each side to remove the cover.

    • If there is resistance, Do not pull hard, just find what screw is not all the way unscrewed.

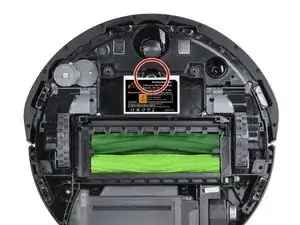

  5. 2jDy4HQNUfcOnbtP

    • Pull back the clip in the middle and pull the battery straight up.

    • When assembling the Roomba again. put the robot on its charging base to wake it up.

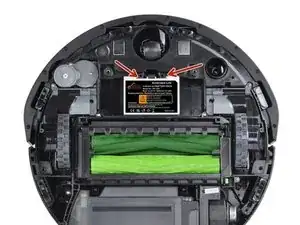

  6. 3BPKswIn6Hj3EBPv

    • Line the battery up with the notches and side it in.

Заключение

To reassemble your Roomba, follow these instructions in reverse order.
