University of Florida/Eml4500/f08.qwiki/Lecture 6

The global force relationship is given by the equation ${\displaystyle F=KD}$, where ${\displaystyle F}$ is the resultant force matrix, ${\displaystyle K}$ is the global stiffness matrix, and ${\displaystyle D}$ is the global displacement matrix.

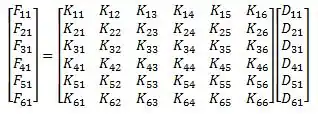

In matrix format,

${\displaystyle k^{e}=k^{e}{\begin{bmatrix}(l^{e})^{2}&(l^{e}m^{e})&-(l^{e})^{2}&-(l^{e}m^{e})\\(l^{e}m^{e})&(m^{e})^{2}&-(l^{e}m^{e})&-(m^{e})^{2}\\-(l^{e})^{2}&-(l^{e}m^{e})&(l^{e})^{2}&(l^{e}m^{e})\\-(l^{e}m^{e})&-(m^{e})^{2}&(l^{e}m^{e})&(m^{e})^{2}\end{bmatrix}}}$
